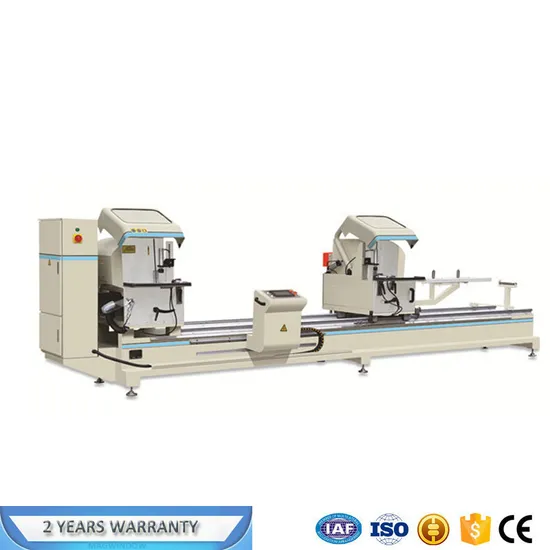

Double Head CNC Cutting Machine for Door Frame Cut Machine

Product Description

factory supply LJZ2S-500*4200 Double-head Precision Cutting Saw CNC / pvc window door processing machine
Main Feature
Product Description
1.High quality carbide tipped sawblades
2.High precision main shaft to keep sawbladea running srability
3.Pneumatic-hydraulic damp device to keep the stable feeding\
4.Adopt high quality guide railing system in the repositioniing precision
5.High precision linear bearing to keep the repositioning precision
6.Auto turnable machine head
7.Vertical and horizontal clamping cylinder
8.Safty protection
9.Right head feeding adopts high helical pitch ball screw-lead motion with high accurate driving,locating and smooth working.
10.Adopt CNC technique,can achieve various profiles auto cutting off

Product Parameters

Saw cutting(w*h)	135*300mm/135*200mm
Main motor power	5.9kw
Main motor rotation speed	2840r/min
Saw blade dimension	500mm*30mm
Saw blade swing angle	90°-67.5°-45°
Working voltage	380v50hz
Over all dimension(l*w*h)	5700*1650*1950mm
Weight	2000kg
Repeat locating length	≤0.2mm
Angle cutting tolerance	±5′
Planeness of cutting surface	≤0.10mm
Cutting profile suiface roughness	Ra12.5Um
Max/Min cutting length	4200-435mm

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Customers
Exhibition

---
