AT240 Series Single Yarn Sizing Machine is suitable for yarn sizing of cotton, flax, silk, wool, synthetic filament, etc.
As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT240 Series Yarn Sizing Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
Specification
Model
| AT240
|
Number of spindles
| 2, 4, 8, 12 or customized
|
Sizing speed
| 20~300m/min
controlled by invertor and adjustable according to yarn kind
|
Heating method
| Steam heating or electric heating (optional)
|
Applicable yarn density
| 5~500tex, cotton, wool silk or chemical fiber
|
Motor power of rotation frame
| 0.18KW per spindle
|
Motor power of grooved drum
| 0.75KW per spindle
|
Heating power of oast
| 1.8KW per spindle
|
Motor power of heat circulation
| Approx.1.lKW
|
Power supply
| AC380V 50Hz, three-phase
|
Dimensions
| 3100×850×1750mm(L×W×H) for 4-spindle machine
|
Weight
| 1000kg for 4-spindle machine
|
Detailed Images

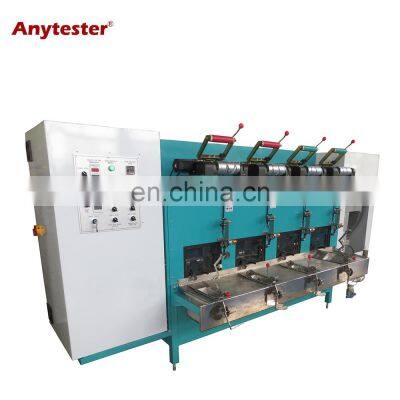

Overview of AT240
★Independent control of each spindle with digital display of speed and length;
★Motor of rotating frame controlled by interver or stepless-adjustable speed controller and grooved drum controlled by servo motor tracing the speed of rotating frame for automatic tension control;
Rotating Frame without Yarn
★Grooved drum controlled by servo motor and its rotation speed is automatically adjusted according to the speed of rotating frame to control the yarn tension;
★Digital display of tension index and digital display of speed of rotating frame and counting of length;
★Easy and convenient to operate;
Yarn Tension Measuring Device and Yarn Breaking Detector
★Yarn Tension Measuring Device and Yarn Breaking Detector
Packing & Delivery
Packaging
|
Size(cm)
| 3100*850*1750mm(L*W*H)
4-spindle machine
|
Weight
| 1000kg for 4-spindle machine
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Item
|
T/T
| EXW
|
30% T/T in advance,paid the balance before the payment
|
FOB
|
CFR(C&F)
|
30% T/T in advance,paid the balance again the copy of L/C
|
CIF
|
L/C
| L/C amount abve 50,000 usd, we can accpet L/C at sight
|
West Union
| Amount lower than 50,000 USD
|
Delivey Time
| 7~10days after receiving payment for one container
|
