US$3,600.00-5,000.00
|
1 Set
(MOQ)
|
Basic Info.
After-Sales Service
Online Service
Press Materials
All Kinds of Oil Seeds
Inner Pressing Barrel
410mm
Transport Package
Wooden Case
Specification
ISO9001, CE, SGS, BV
Production Capacity
1000 Sets Per Month
Product Description

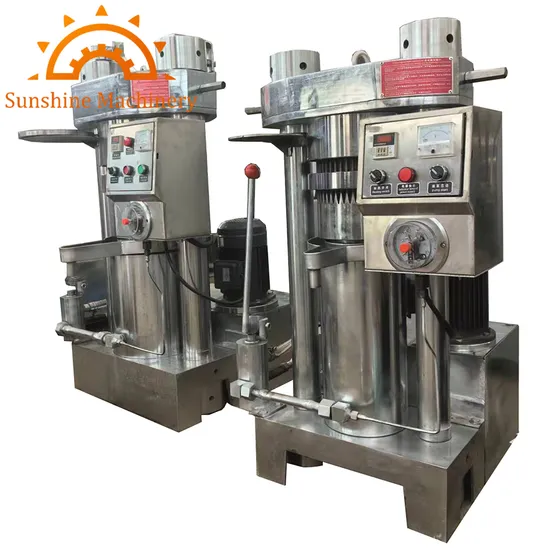

Mini Walnut Oil Pressing Machine Oil Extraction Equipment
The main parts of thehydraulic oil press machine are piston, hydraulic cylinders, columns, beams on activities, base, oil pump, cylinder, electric lap and automatic temperature control devices. All materials are made of high quality metal material, thereby improving the performance of the machine, to ensure that the service life of components.
The mini walnut oil pressing machine oil extraction equipment has a top plunger main components, hydraulic cylinders, columns, activity on the base, table, barrel, heating ring, fixed sets, fuel tank and other components.
Capacity
Oil seeds | Time/Batch | Capacity/Batch | Capacity/10hours | Oil yielding rate |
Sesame | 5-8minutes | 6-9Kg | 360-520Kg | 42%-52% |
Camellia | 8-12minutes | 6-9Kg | 260-320Kg | 25%-35% |
Walnut | 8-12minutes | 6-9Kg | 260-320Kg | 50%-60% |
Pine nuts | 8-12minutes | 6-8Kg | 310-630Kg | 45%-60% |
Suitable seeds for mini walnut oil pressing machine oil extraction equipment
Crushing peanuts,sesame, pumpkin seeds, linseed, mountain seed, cocoa bean, coffee bean, pepper seeds, walnuts, tea seed, castor, camellia, pumpkin seeds, nuts, olive, black seed, walnut, almond and other oil crops. Detailed Photos
RFQ
1, Which kinds of seeds your machine can press?
It can press peanuts, soybeans, rapeseed, sesame, sunflower, linseed, mountain seed, cottonseed, pepper seeds, walnuts, tea seed, castor, camellia, pumpkin seeds, nuts, olive, black seed, almond and other oil crops.
2, What is the power?
The motor is 1.5kw, good motor.
3, What is the production time?
The machines are in stock, we just need 2 days to pack the machines and send them to the port.
4. Can you provide us with operation video and English manual?
Of course, we can provide you video and manual. We can also send technician for your factory to instruct if you need.
5, What other machines we need after this machine if we want to pack the oil into bottles?
The oil is better if you get another equipment like low temperature filter process equipment. After that, you fill the oil into bottles and cap them.
Technical parameters
| Model | QYZ-500 | QYZ-410 | QYZ-230 |
| Working pressure | 40MPa | 45MPa | 55MPa |
| Pushing force of working | 300t | 120t | 190t |
| Inner diameter of pressing barrel | 500mm | 410mm | 230mm |
| Working stroke of piston | 700mm | 500mm | 300mm |
| Capacity of pressing barrel | 200kg | 80kg | 8kg |
| Handling capacity | 200kg/h | 80kg/h | 45kg/h |
| Main motor | 4kw | 1.5kw | 1.5kw |
| Motor of heating | 4kw | 4kw | 2kw |
| Weight | 2800kg | 1500kg | 850kg |
>>
