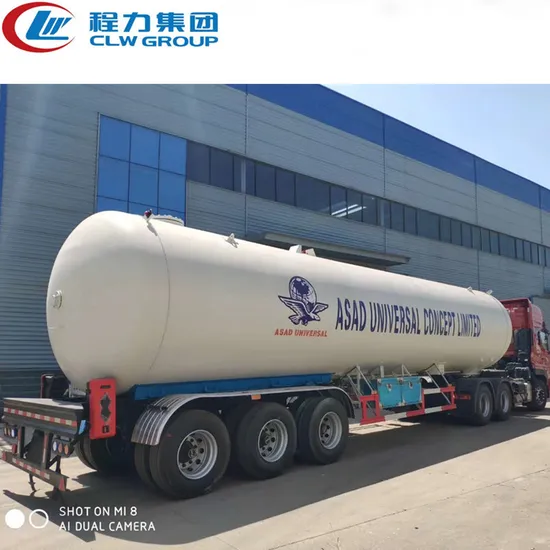

60cbm 30tons Propane LPG Cooking Gas Tank LPG Semi Trailers

Product Description

3-Axle 60cbm LPG Gas Transport Tank Trailer 30Tons LPG Tank Semi Trailer
Tri - axles 30Tons LPG Tank Trailer 60CBM LPG Gas Tank Transport Trailer, 60,000Liters LPG Tank Trailer
3 Axles Pressure Vessel Propane 60m3 LPG Tanker Trailer 60000liters LPG Tank Semi Trailer, 3-Axle 60cbm LPG Gas Transport Tank Trailer 30Tons LPG Tank Semi Trailer,3 Axles 60cbm 30tons Propane LPG Cooking Gas Tank LPG Semi Trailers.
LPG gas tank semi trailer is fron 40cbm to 60cbm (40,000liter to 60,000liter) for optional.
Applications:
LPG tank semi trailer (also called propane storage tank semi trailer ,lpg storage tank truck semi trailer ,lpg semi trailer ,lpg tank semi trailer ,lpg road tank semi trailer , propane semi trailer ,lpg gas semi trailer ,lpg transport semi trailer ,propane delivery semi trailer ) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
The LPG tanker semi trailer material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanker semi trailer are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.

Competitive Advantage:
1.Our LPG tanker semi trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection
2.Emergency shut off valve fore safety
3.Double side for discharge and loading ,double tool box and valve box
4.LPG dispenser optional with automatic fault detection and overload protection
Technical parameters:

Tank Essential Information
Volume of Tank	60 CBM (60,000Liters / 30Tons)
Overall Dimensions(L*W*H)	13000*2500*3990 mm
Filling Weight	25003 kg
Tare Weight	14997 kg
Total Weight	40000 kg
Wheelbase	7230+1310+1310 mm
Shell of tank
Products	Liquefied petroleum Gas(propane)
Fluid Property	Flammable
Design Temperature	-20~50ºC
Design Pressure	1.61 Mpa
Corrosion Allowance	1 mm
Major Materials of Bearing Pressure	Tanker body:Q345, 14mm
	End plate:Q345R, 16mm,double ellipse
	Main beam:16Mn
Detection
Heat Treatment	Overall treatment in a furnace,600ºC to 640ºC
Flaw Detection	100% Flaw detection
Test Pressure	1.61Mpa
Hydraulic Test	2.1Mpa
Magnaflux inspection	Aim at welding place that flaw detection can not cover
Manhole(As customer's requirement)	1, on top
Safety Valve(As customer's requirement)	1, on top
Running system
Axles	3*13T Fuwa brand
Suspension	Mechanical suspension
Tire	12R22.5 Tubeless tire,13 including one spare tire
Pneumatic Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Landing leg	JOST brand, two-speed, manual operating
King Pin	3.5 inch

Related Pressure Vesssel LPG Products:
For more LPG Tank Trailer information, please feel free to contact me or send an inquiry to me:
