Plastic Lid Making Machine Lid Thermoforming Machine

Product Description

I. Feature & parameter
- Adopting the latest international plastic molding tech & craft.
- High effect, environment friendly, easy to handle and other advantage.
- Combines machine, electricity and gas integration design, and PLC human-machine interface control.
- Full auto lid forming, hole punching, cutting, stacking with counting.
- This equipment is specialized in the production of coffee lid, coke lid, cup lid, bowl lid etc.
- Available material HIPS, PVC, PET and other plastic sheet molding production

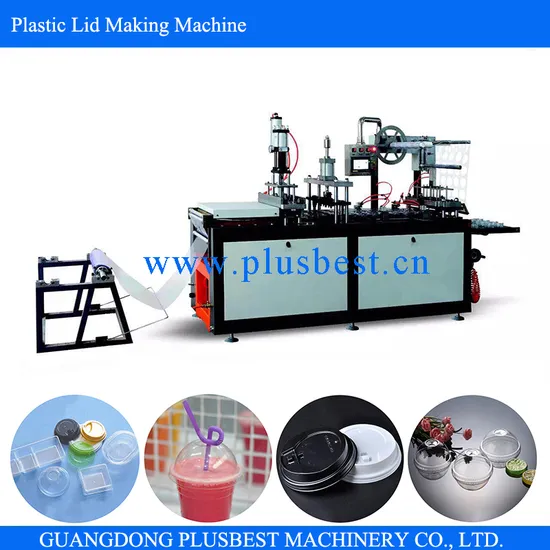

II. Machine photo
III. Technical Data

Mode No.	PB-450
Available material	HIPS-PVC-PET
Stroke Range(mm)	30-340
Max. Forming Area(mm)	480*320
Main Motor(kw)	3
Sheet Servo Motor(kw)	0.75
Heating Power(kw)	12kw
Max. Depth(mm)	50
Forming Speed(cycles/min)	10-32
Air Pressure(Mpa)	0.5-0.7
Air Consumption(m³/h)	≥ 0.22
Noise	75Db
Weight(kg)	1900
Dimension(mm)	2900*950*1700

IV.About Us
PLUSBEST is a professional PLASTIC MACHINERY manufacturer, supplier ,importer and exporter with scientific research, design, production and market ,which is the head office of BENYOU TECHNOLOGY located in SHANTOU CITY OF CHINA.

As the professional manufacturer, we our team have already been specializing in PLASTIC MACHINERY for making PLASTIC SHEET EXTRUDER, PLASTIC THERMOFORMING MACHINE, VACUUM FORMING MACHINE, LASER/OFFSET PRINTING MACHINE, DRINKING STRAW MACHINE, PLASTIC PACKING MACHINE, MOULDS AND AUXILARY etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware and so on for all over the global market.

We PLUSBEST have been enjoying a great reputation, and are going to guide BENYOU TECHNOLOGY to go ahead. Since 2022 overseas business more than 40 countries has been directly co-shared with us in Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia ,besides more countries will be being increased year by year.

With both skillful export experience and professional equipment knowledge we all PLUSBEST people are always to improve better service and innovating technology support, as well as new products introduction for customers all over the world for bright future.

Warmly welcome home and abroad friends to visit PLUSBEST.

---
