Road Asphalt Machine 40-160tph Dhb/Mdhb Series Hot Asphalt Mixed Batch Plant

Product Description

Asphalt Drum Mixing Plant DHB/MDHB Series China Asphalt Factory Customized
asphalt drum mixing

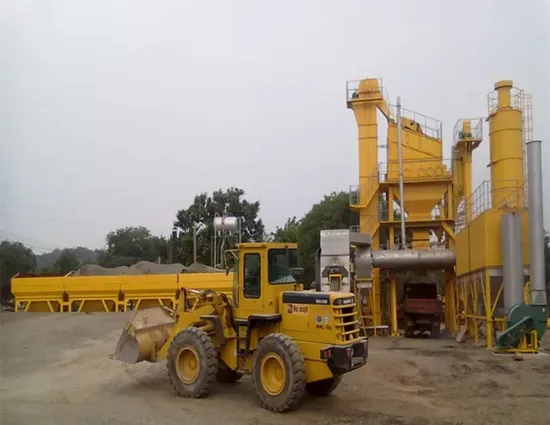

Asphalt drum mixing plant mainly including: cold aggregate supply system, burner,drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.
Drum mixing type asphalt plant, to continously produce asphalt mixture.
Burning system:
I. Oil burner; II. Gas burner; III. Coal burner; IV. Oil&Gas dual purpose burner
Mobile Type: MDHB series; Stationary Type: DHB series
Features
Compact structure, less land occuption;
Low initial investment, highly cost-effective;
Convenient for transporation and mobilization;
MDHB series equipped with mobile chassis can be directly pulled by truck or vehicle;
Cold aggregate bins equiped with weight sensors and variable frequency motors;aggregate feeding rate is remote controlled, adjustable and precise;
Drying drum have functions of drying, heating and mixing, low heat loss;optimized inner structure, fast heating and well mixing;

Model	Capacity(t/h)	Weighing accuracy		Total Power(KW)	Consumption(kg/t)
		Aggregate	Bitumen		Coal	Oil
MDHB/DHB20	20	±1.5%	±1%	40	10	5.5-7
MDHB/DHB40	40	±1.5%	±1%	75	10-13	5.5-7
MDHB/DHB60	60	±1.5%	±1%	128	10-13	5.5-7
MDHB/DHB80	80	±1.5%	±1%	165	10-13	5.5-7
MDHB/DHB100	100	±1.5%	±1%	200	10-13	5.5-7

Main Structure:
-Cold aggregate feeding system
1.Aggregate feeding is controlled by frequency invert
2.The side face of hoppers is equipped with fence to keep safety
-Drum Dryer and Burner
1.The drum dryer inclined angle: 3°
2.Burner: Oil burner
-Dust Filter System
1.Hot Finished Products Bin
-Middle screen and Inclined Belt
1.The Middle screen can take away the aggregates which size is over 25 mm
-Hot Finished Products Elevator
1.Elevator is vertical bucket elevator
2.Component: rack, plate chain lifting, hopper, tension device and shell
3.Function: take the mixture into finished goods hopper
-Control Room and Control System
1.Weighing control system
2.Control room:3000×2200×2500mm
3.The Main electrical elements can be international brand or domestic brand
-Bitumen Tank
1.Capacity can be 30Ton or 40Ton bitumen tank which is suitable for transportation by sea

---
