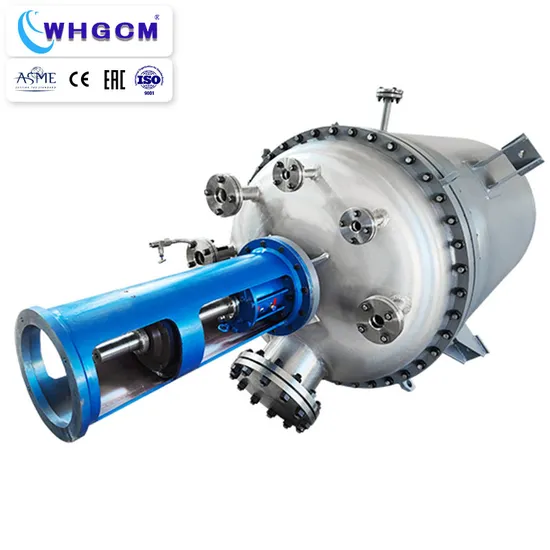

| Industrial Reactor Technical Parameters |
| Work Volume (L) | 1000 | 2000 | 3000 | 5000 | 8000 | 10000 | 20000 |
| Structure Type | Close type (with man hole) |
| Design Pressure (Mpa) | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-15 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 | Negative 0.1-10 |
| Design temperature | -196~300 ºC | 196~250ºC |
| Mixing Speed | 0~800 r/min | 0~500 r/min |
| Motor | Ordinary AC motor, or Explosion-Proof motor as per customer request. |
| Motor Power | 5.5 KW | 11 KW | 15 KW | 22 KW | / |
| Heating Power | 48 KW | 60 KW | 75 KW | 90 KW | / |
| Heating Style | Far infrared electric heating, electric heater with thermal oil bath, jacket circulation with thermal oil/steam/melt salt | Jacket circulation with thermal oil/steam/melt salt |
| Discharging Style | Discharging from bottom, or sampling from kettle lid |
| Mixer Shaft | Self-lubricating wear-resistant sleeve made of stainless steel, suitable for mixing various medium under high speed. |
| Mixing Style | Impeller, paddle, anchor, turbine, self-suction style, or as per customer's request. |
| Seal Type | Magnetic Seal / Mechanical Seal / Packing Seal |
| Contact Material | Contacting material mainly use Cladding Plate of Stainless Steel SS304+Mild Steel Q345R, SS316L+Q345R, SS321+Q345R, or use pure stainless steel; Or use Titanium, Nickel, Zirconium, Hastelloy, Inconel or Monel Cladding Plate, or coating with PTFE or PPL as per customer request. |
| Kettle Lid Open Port | Gas port, Liquid port, Thermowell port, Solid feeding port, Pressure gauge, Burst disc (safety valve) port, Man hole (Hand hole), Cooling water inlet/outlet port
(or Visual Glass Port and other port according to working pressure) |
| Controller | Equipped with automatic PID or PLC controller, temperature control accuracy ±1ºC; Can display & control Mixing Speed and Heating Temperature; Can adjust heating power for constant temperature, also has self-adjustment function. |
| Other Accessories | If the user have other special requirements on kettle cover, kettle body openning, internal structure, high and low pressure, stirring paddle and other supporting device (such as refluxing unit, condenser, constant feeding tank, collector, etc) we can manufacture ODM reactors according to users' requests. |
Certifications Customer Visit & Showcase Production Equipment Packaging & Shipping FAQ
Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1. Working Volume
2. Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
6. With mixer/agitator or not
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.
Technical consulting is always for free.
Arrange our engineer to assist customer in equipment assembly and installation;
Training workers to use machine properly.
