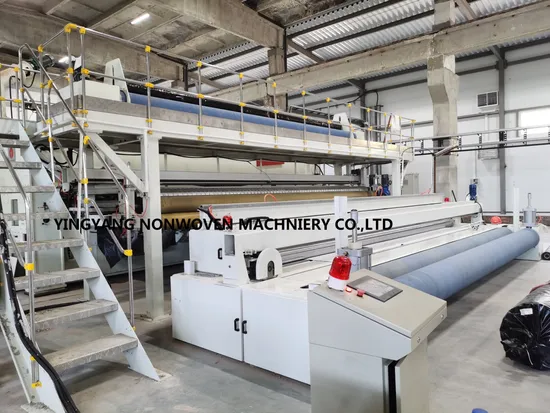

Durability Physical Stability Needle Punching Production Line

Product Description

Durability Physical Stability Needle Punching Production Line
Product Description
I. The brief introduction of the product and usages
The principle of Geo-synthetic Clay Liners is as follows : fill the natural bentonite between the woven and nonwoven cloth, adopts needle punching technology to prevent the bentonite from gathering and moving, and forms an even water-proof layer.
Characteristics:
1) High distensibility and bonding
2)Strong chemical and physical stability
3)Strong heat-resistant,cold-resistant, environmental protection and durability
II. Application range
Waster buring field,subway, underground parking,open trench tunnels, artificial lake, reservoir, highway and similar water-proof and leaking-proof projects.
III. Main technical parameters

Machine width	6500mm
product net width	6000mm
weight of betonite product	3000-6500gsm
main materials	needle punching nonwoven geotextiles,woven Textile fabric and natural bentonite, PE film
linear speed of the finished products	1-3m/min

Main technical parameters
1. Machine width: 6500mm
2. Product net width: 6000mm
3. Weight of Betonite product: 3900g-6500g
4. Main materials: Needle-punching nonwoven geotextiles, woven Textile fabric and natural bentonite, PE film
5. Products types:
1) Common bentonite product
2) Bentonite with PE film (max 0.2mm thickness) laminating
3) Geotextiles laminated with PE film with thickness 0.5-2.5mm
6. The linear speed of the finished products: 2-3mmin Detailed Photos
Flow diagram
YYFJ-650 Unwinder→YYCB-650 Tension frame→YYSL-650 Bentonite Material sprinkler →YYTJ-650 Unwinder→YYZS-650 Needle punching machine→YYTJ-650 Unwinder for PE film→ Melt glue machine (reciprocating spraying) → YYXT-650 Winder and cutter
