Wood

Product Description

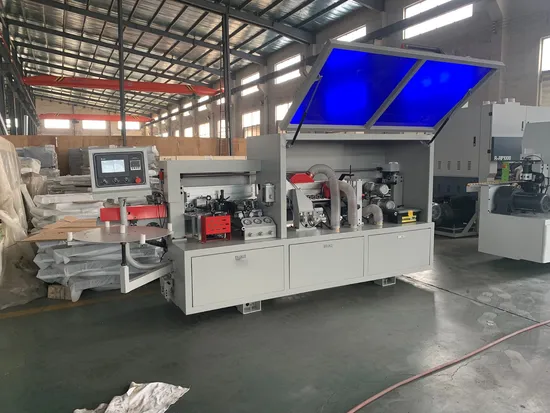

Economical PVC Edge Banding Machine Woodworking Edge Bander Machinery with EVA
ZD400
Product Parameters

Banding tape thickness	0.4-3mm
Banding tape width	10-60mm
Workingpiece thickness	10-60mm
Workingpiece length	≥100mm
Workingpiece width	≥50mm
Heating power	1.5kw
Feeding motor power	2.2kw
Gule spreading motor power	0.37kw
End trimming motor power	0.55kw*2
Fine trimming motor power	0.75kw*2
Polishing motor power	0.18*kw2
Feeding speed	13m/min
Air pressure	0.7Mpa
Total power	6.23kw
Net weight	710kg
Machine size	3100*750*1500mm
Gross weight	815KG
Packing size	2600*860*1520mm

ZD400 has the following four functions:
Gluing; End cutting; Fine trimming; Polishing.
ZD450 series & ZD300~800 series edge banding machine available in a variety of configurations optional to meet your different productions requirements.
If you use our machine, you can achieve the following functions:
1.Symmetrically edge banding with perfect round corners.
2.Invisible glue lines. 3.Clean surface with smoothly edge trimming.
Our Advantages
Our edge banding machine use high quality accessories with the latest design.
1.Band clamping patent, perfectly preventing the bands from moving off its track.
2.Board preheating to get a better gluing effect.
3.Nonstick material glue pot, easy to clean without residue. 4.Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.
5.Auxiliary pinch roller for narrow boards. Stable edge banding even for 4cm width panel.
6.Band clamping by pneumatic control on fine trimming and scraping processes without manual adjusting.
