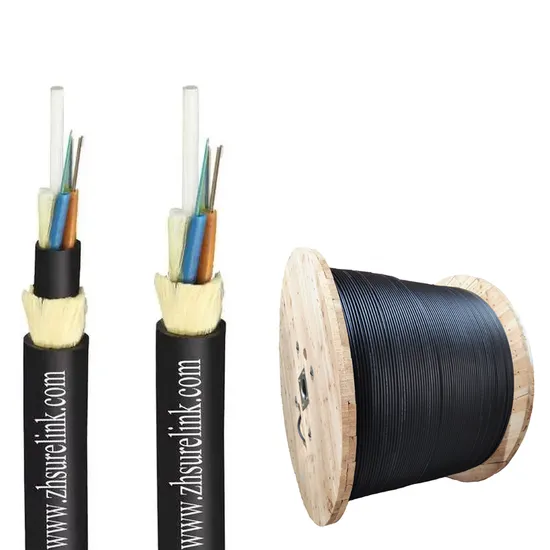

80m 100m 120m 200m Span Fiber Cable ADSS Optical Single Jacket ADSS Aramid Yarn Fiber Optic Cable Optic Fibre Cable ADSS

Product Description

SURELINK 20years adss manufacturer 48core 96core 144core 288core all dielectric self supporting ADSS communication cable adssADSS cable is loose tube stranded. 250μm Fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound and stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.Product Specifications
1. Product Structure
2. Technical Specification

Model Number	ADSS
Type	Fiber optic cable
Number of Conductors	>=10
Application	Aerial fiber cable
Function	Delivery signal light
Certification	ADSS pass ISO9001,UL,TIL,CE
Sheath material	PE or AT for ass fiber optic cable
Fiber type	OS1/OS2,OM1,OM2,OM3,OM4
Length per roll	2km/3km/4km ADSS fiber
Marketing	printing
Fiber count	2 core to 288 core
Strength member	FRP

3. Features
1. Loose tube design Stable performance and compatibility with all common fiber types2. Self-supportingInstead of Aramid yarn or glass yarn,there is no support or messenger wire required.3.Track-resistant &jacket availableFor 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT)outer sheath.4.Sutable for Aerial self-support installation
4. Performance

Fiber Type	G.652D,125.0+-1.0μm
Mode Field Diameter	9.2+-0.2μm at 1310 nm
Cladding Diameter	125+-1μm
Cladding Non-Circularity	<=1%
Coating Diameter	245+-10μm
Attenuation Coefficient	<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion	<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength	1300-1322nm
PMD Coefficient	<=0.2ps/√km

Similar Products
GYXTW GYXTY GYTY Duct Fiber Optic Cable FTTH Fiber Optic Cable
Terminal Box Fiber Optic Drop wire clamp Fast ConnectorCompany Profile
Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories.
We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients
and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients
from all over the world.
OEM and ODM order highly welcome !Certifications
