Product Details
Product Description
Product Description
Chemical distillation equipment mini rotary evaporator
1.Feature and Description
1,The move up and down lift system adopts motor revolved lifting structure.
2,The condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.
3, The axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use teflon + teflon two-way sealing, and the effect is good.
4, It is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
5, The device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.
6, B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.

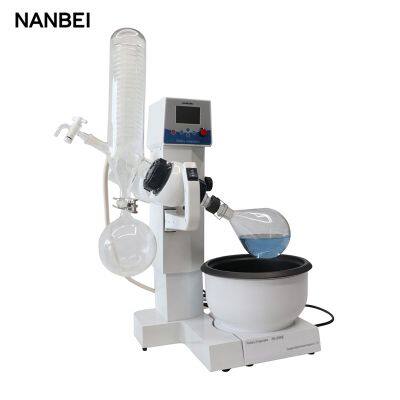

2.Picture for our product
3.Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
4.Technical data
| Model | NBRE-2000A | NBRE-2000B | NBRE-2000E |
| Glass materials | GG-17 |
| Holder materials | Stainless steel |
| Condenser |
Vertical |
| Speed display |
/ | Digital
|
LCD |
| Temp display | Digital | Digital | LCD |
| Evaporator flask | 1L
| 1L
| 1L
|
| collect flask | 0.5L
| 0.5L
| 0.5L
|
| Vacuum degree | 0.098Mpa |
| Rotary speed | 20-200RPM |
| Heating power | 1.5KW | 1.5KW | 1.5KW |
| Water tank temp. | 90C |
| Lifting stroke | 0-150mm |
| Voltage | 220/110V 50/60Hz |
5.Packing and Shipping
6.Other capacity of electric lifting rotary evaporator
| 20L electric lifting vacuum rotary evaporator | Model | NBRE-2000 |
| Rotating motor power
| 60W |
| Lifting motor power | 40W |
| Heating power | 5kw |
| Rotating flask | 20L Flange mouth:Φ355mm/Φ95mm
|
| collecting flask | 10L Flange mouth:Φ280mm/Φ60mm
|
| Vacuum degree | 0.098Mpa |
| Rotary speed | 0-120rpm/min |
| Heating temp | 0-400C |
| Glass temp range | -80C to 250C |
| Condenser sizeFeed valveRelease valve | MainΦ130*680H(mm) DeputyΦ130*410H(mm) |
| Didcharge valve | 10mm glass and lean discharge port |
| Bath size/volume | Φ450*250H(mm) about 39L |
| Lifting stroke | 0-180mm |
| Voltage (various power supply and plug can be customized) |
| 10L electric lifting vacuum rotary evaporator | Model | NBRE-1000 |
| Rotating motor power | 60W |
| Lifting motor power | 40W |
| Heating power | 4.5kw |
| Rotating flask | 10LFlange mouthΦ280mm/Φ95mm
|
| collecting flask | 5L Flange mouthΦ230mm/Φ50mm
|
| Vacuum degree | 0.098Mpa |
| Rotary speed | 0-120rpm/min |
| Heating temp | 0-400C |
| Glass temp range | -80C to 250C |
| Condenser size | MainΦ130*640H(mm) DeputyΦ130*410H(mm) |
| Didcharge valve | 10mm glass and lean discharge port |
| Bath size/volume | Φ350*220H(mm) about 21L |
| Lifting stroke | 0-180mm |
| Voltage(various power supply and plug can be customized) |
5L electric lifting vacuum rotary evaporator
| Model | NBRE-2005 |
| Rotating motor power | 40W |
| Lifting motor power | 30W |
| Heating power | 3kw |
| Rotating flask | 5L
|
| collecting flask | 3L
|
| Vacuum degree | 0.098Mpa |
| Rotary speed | 0-120rpm/min |
| Heating temp. | 0-400C |
| Glass temp range | -80C to 250C |
| Didcharge valve | 15mm glass and lean discharge port |
| Bath size/volume | Φ250*120H(mm) |
| Voltage(various power supply and plug can be customized) |
| 50L electric lifting vacuum rotary evaporator | Model | NBRE-5000 |
| Rotating motor power | 100W |
| Heating power | 8kw |
| Rotating flask | 50L
|
| collecting flask | 20L
|
| Vacuum degree | 0.098Mpa |
| Rotary speed | 0-120rpm/min |
| Heating temp. | 0-400C |
| Temp controlling accuracy | ±1C |
| Voltage(various power supply and plug can be customized) |
7 Manual lifting rotary evaporator
10L 20L 30L 50L manual lifting vacuum rotary evaporator
| 1L 2L 3L 5L manual lifting vacuum rotary evaporator
|
|
8 Related Products of rotary evaporator
Glass reactor Water circulating pump Chiller
FAQ
Q:Are you trading company or manufacturer?
A:We are professional manufacturer of rotary evaporator and we have our own factory. |
Q:What is the main use of rotary evaporator?
A:Rotary evaporator is the mainly use for manufacturing and analyzing experiments when they do extraction and concentration. |
Q:What is the application of rotary evaporator?
A:Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units. |
Q:What is the rotary evaporator consist of?
A:Rotary evaporator is consist of condenser, vacuum gauge, collecting flask, rotary flask, water/oil bath, motor and regulator, panel, floor and power wire. |
Q:What is the necessary machine of rotary evaporator for whole experiment?
A:The whole experiment includes rotary evaporator, water circulating pump, chiller, diaphragm pump, high and low temperature pump. |
Q:What is the delivery time?
A:Delivery within 3 working days if we have in stock, or 5-7 working days if the goods are not in stock. |
>>
