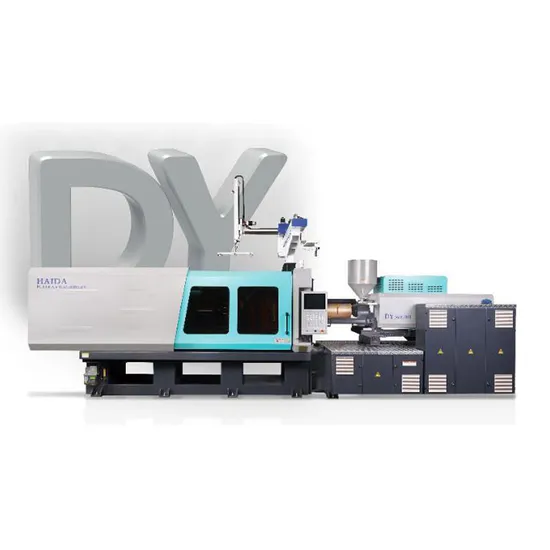

Haida Injection Molding Machine

Product Description

Product Description
HDEb Two-Platen Series:
>>>The new two-platen type clamping structure inherits the mature and reliable fixed mode of the traditional
three-board machine pull rod, greatly prolonges the life of the pull rod, and completely avoids the fatal defect
that most of the two-board machine pull rod is easy to break in the market.

>>>Elastic box formwork design, high parallelism, greatly ensure that the four pull rod stress uniform. The
movable formwork is supported by high rigid sliding feet, and compensable adjustment is provided. It can be
adjusted automatically according to the weight of the die to ensure stable support.

>>>The operation control of opening and closing mode and clamping mode is simple and reasonable. The
hydraulic mechanical structure is used to realize the synchronous lock of four tie rods with high efficiency.
The measurement adopts non-contact digital displacement sensor, anti-interference, precision 0.001%/F.S
(F.S measurement stroke), precise position control.

>>>Equipped with world-class brand hydraulic components and electric control equipment, smooth and reliable
operation, greatly improving efficiency while reducing calorific control.
_____________________________________________________________________________________________________________________
Basic Information:

Number Item

HD100L

Category

HDL Series

OEM

Available

Warranty

1 Year

Factory

Yes

Model NO	HD100L		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLD
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Ningbo,Zhejiang,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos
INJECTION SYSTEM&PLC SYSTEM:
________________________________________________________________________________________________________________________________________
CLAMPING SYSTEM:

New Two-Platen Structure
1, The integral clamping piston replaces the Harff locking mechanism and the traditional clamping cylinder structure. A large number of parts are reduced and moving parts are minimized. The reliability and service life are greatly improved.
2, A holding cylinder through 3 connecting rods driven by 4 mode-locked piston synchronous action, holding brake stability, quiet, long life. The gate position is double checked and the Factor of safety is high.
3, Tie Rod Head Plate fixed, upper tie rod two plate copper sleeve support, lower tie rod support plate support, lower tie rod and do two plate guide, Tie Rod no suspension, no droop, no sloshing. The guide span of the second plate is large and the guide rigidity is strong. Fast and stable opening and closing die for two plates.
4, Tie Rod Nut and die-locking piston mount design, protect tie rod thread, improve tie rod life. Pull Rod life-cycle design, machine non-stop pull rod.
5, high rigidity shuttering body. Make sure that the second plate opens and closes the die quickly and smoothly.
6, the clamping cylinder can be disassembled as a whole, which is easier to maintain.


Product Parameters

ITEM-HD100L		UNIT	DATA
Injection Unit	Screw Diameter	mm	35	38	40
	Screw L/D Ratio	L/D	22.8	21	20
	Injection Volume	cm3	154	182	201
	Shot Weight(PP)	g	140	166	183
	Injection Pressure	Mpa	208	177	160
Clamping Unit	Clamping Force	KN	1000
	Opening Stroke	mm	330
	Mould Thickness(Min-Max)	mm	140-380
	Space Between Tie-Bars	mm	370x370
	Hydraulic Ejection	KN	31.4
	Ejector Stroke	mm	100
General	Motor Power	KW	11
	Heater	KW	7.5
	System Pressure	Mpa	16
	Machine Dimension	m	4.45×1.12×1.93
	Machine Weight	T	3
	Mould Orientation Ring Diameter	mm	Φ125
	Nozzle Radius	mm	SR10

Application
APPLICATION FIELD:


HAIDA HDEb Series Typical product such as below:
>>>Large logistics turnover boxes,pallets,erc
>>>Garbage classification bucket
>>>Refrigerator,washing machine and other household appliances plastic accessories
>>>Car bumper,car interior panel,etc


Auxiliary Machines
