Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform
Maximum Lifting Height
4m
Product Name
EQ Type Electric Chain Hoist
Control Method
Pendant +Remote(Customized)
Core Components
Bearing, Gear, Pump, Gearbox, Engine
Video Outgoing-Inspection
Provided
Applicable Industries
Garment Shops, Building Material Shops, Machinery
Transport Package
Standard Export Packing
Production Capacity
2000sets Per Month
Product Description
Product Description

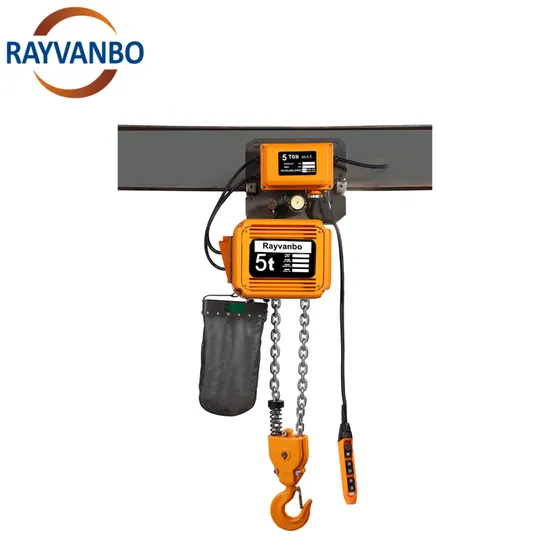

ER model electric chain hoist EQ model electric chain hoist
1. Electric Motor:
* The hoist is powered by an electric motor, typically mounted on the hoist body or housing. * The motor provides the necessary power to drive the lifting mechanism 2. Lifting Mechanism:
* The lifting mechanism consists of a chain or wire rope that is wound around a drum or sprocket. * In the case of an electric chain hoist, a load chain is used. The chain is designed to handle heavy loads and is driven by the electric motor. 3. Load Chain:
* The load chain is a durable chain made of high-strength materials, capable of withstanding the weight of the load being lifted. * It is attached to a lifting hook or other load attachment device. 4. Lifting Hook or Attachment:
* The lifting hook or attachment is the point where the load is connected to the hoist. * It is designed to securely hold the load during lifting and lowering operations. 5. Control System:
* Electric chain hoists are typically equipped with a control system that allows operators to control the lifting operations. * Control options may include push-button pendant controls, radio remote controls, or in some cases, a control panel on the hoist itself. 6. Safety Features:
* Electric chain hoists often come with various safety features, such as overload protection, emergency stop buttons, and limit switches to prevent overtravel. * Some hoists also have thermal protection to prevent the motor from overheating during prolonged use. Product Details
Product Parameters
Type
| Capacity(Ton)
| Lifting Height(m)
| Lifting Speed(m/min)
| Gourd
| Sports Car
|
|
ER01-01Y
| 1
| 4
| 7.0
| 47
| 38
|
ER02-01Y
| 2
| 4
| 7.0
| 91
| 44
|
ER02-02Y
| 2
| 4
| 3.5
| 54
| 44
|
ER03-01Y
| 3
| 4
| 7.0
| 104
| 55
|
ER03-02Y
| 3
| 4
| 3.5
| 108
| 55
|
ER05-02Y
| 5
| 4
| 3.5
| 132
| 77
|
ER075-03Y
| 7.5
| 4
| 2.3
| 175
| 77
|
Type
| Capacity(Ton)
| Grade
| Package
| Chian Size(mm)
| Net Weight
| High Speed(m/min)
| Low Speed(m/min)
|
EQ 0.25-1 IS
| 0.25
| M5
| 50*35*34
| 5.6
| 30
| 15
| 3
|
EQ 0.5-01 IS
| 0.5
| M5
| 50+35*34
| 5.6
| 30
| 7.8
| 1.6
|
EQ 01-01 IS
| 1
| M5
| 60*40*38
| 7.1
| 40
| 5.2
| 1
|
EO 02-02 1S
| 2
| M5
| 60*45*40
| 7.1
| 40
| 2.6
| 1.5
|
