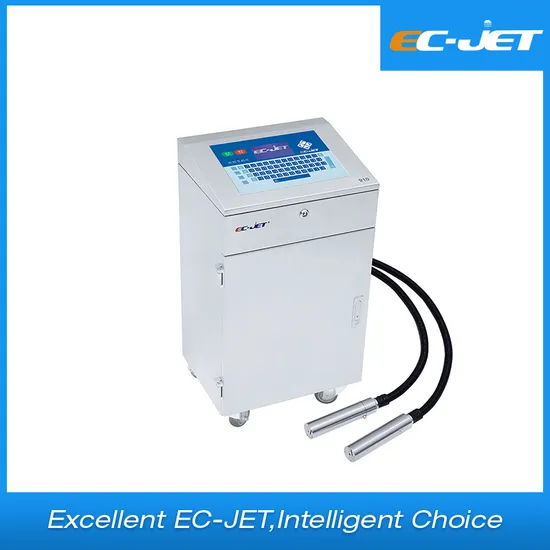

Expiry Date Printing Machine Continuous Ink-Jet Printer for Jelly-Cap (EC-JET910)

Product Description

Expiry Date Printing Machine Continuous Ink-Jet Printer for Jelly-Cap (EC-JET910)
Application Fields for continuous inkjet printing
The Industrial inkjet printer EC-JET printers provide a means of application of printed information onto a wide range of products. This information would typically be the date, production codes, consumer information, product or corporate identification,product traceability, and many others. It can be widely used in pharmaceutical, chemical, food, construction materials,tobacco, ceramics, electronics and other industries.
Technical Parameter

Printhead	MIDI (40u,50u,60u,70u)
Nominal character range	up to 34 dots
Number of line	1~4 lines
Max.Message Length	Up to 1055 characters
Max Speed	6.25m/s for single line 7*5 matrix
Conduit	2M or up to 6M
Printing height min	0.9mm/printhead
pringting height max	15mm/printhead
printing characters max per second	2857
Net Weight	40KG

How does CIJ works ?
The ECJET INKJET PRINTER SureStart print head contains an ink drop-generator with a vibrating drive rod.
This creates ultrasonic pressure waves in the inkjet ink, breaking it up into individual droplets. When these droplets fall between a set of electrodes, individual droplets are intermittently charged. The size of the charge given to each droplet determines how far it will be deflected out of the stream when passing through the deflector plates. This determines its placement on the product.
By placing a collection of these droplets close together, a variety of characters are printed as the product passes the print head. Ink droplets not deflected out of the stream are re-circulated to repeat the process. This is a highly efficient use of ink jet ink allowing many millions of characters to be printed from a litre of ink
Printhead 1)The print head is supplied with ink by the ink system which the print head forms into a continuous stream of ink drops which recycle to the ink system. When printing is required, drops of ink for printing the message are deflected from the stream out of the print head onto the product, providing a non-contact method of printing. The process is controlled by the electronics module which also stores the messages to be printed. The message is programmed using the keyboard and display.
2)The print head is robustly designed for industrial environments. It is hermetically sealed and is permanently attached to the printer itself by a 2 metre (or optionally 4 metre) length of conduit.
Advantages : Easy for carriage,easy for quick maintenance
1) New ink systerm with low consumption ;
2) Ink separate with electronic system which are easy to maintenance and more safety;
Printing samples:
It can be widely used in pharmaceutical, chemical, food, construction materials,tobacco, ceramics, cable and wire ,electronics and other industries.
Factory Of ECJET
ECJET company has more than 80 peoples including Sales,R&D and Professor after-sale engineers and so on.
EC-PACK Product liness are certified and approved for used by many regulatory organization:CE,UL,CSA,ROSH And FDA.
Avaiblable ink and Ink systerm
1.Basic MEK /Aquarous suitable for normal usage
2.Eable ink for food industry or UV invisible ink
3.Custom made ink for special requirtments
Protection of Printer
Stainless steel 304 cabinet with IP55 OR IP65 to make sure the quality and operation.
If any enquiry,welcome to contact with us asap .

---
