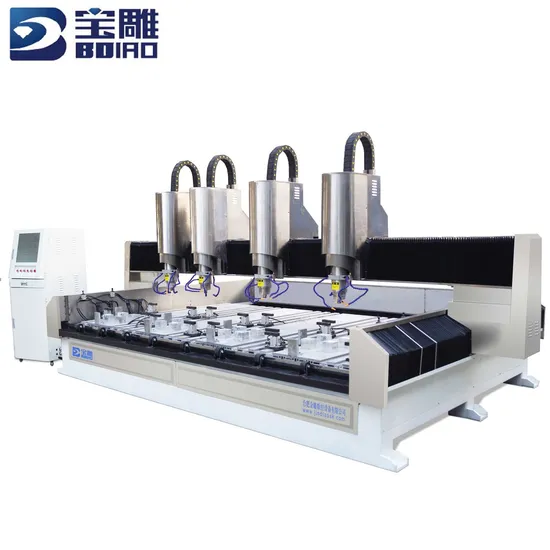

Mars Bd-2525A Four Spindle Stone Engraving CNC Router Machine for Art Relief

Product Description

Four Spindle Stone Engraving CNC Router Machine for Art Relief

NO.	performance index	index	parameters
1	stroke	X stroke	2500mm
		Y stroke	2500mm
		Z stroke	300mm
2	Working Area		2500mm*2500mm*300mm
3	precision	working accuracy	±0.05mm
		Repeated positioning precision	±0.03mm
4	structure	table structure	Dustproof and waterproof structure
		X,Y,Z structure	X,Y gear rack,Z screw
5	Speed	Max no-working speed	17000mm/min
		Max working speed	10000mm/min
6	Spindle	Spindle power	3.7/4.5/5.5KW Water cooling spindle
		Spindle rotate speed	0-24000r/min
7	operational mode		Bujin servo
8	working voltage		AC380V/50Hz
9	Command code		G code
10	operating system		Weihong system
11	waterproofing system		Waterproof folding film, cooling water pipe
12	fuel loading system		Automatic oiling system
13	screw rod		High precision imported lead screw

Advantage:
1. We're manufacturer of CNC routers with over 15 years experience.
2. All our machines are made in strict accordance to ISO & CE & SGS certificate with premium quality and competitive price.
3. Our sales& service network has covered all dometic major cities and overseas markets, such as the USA, European, Southeast Asia, Middle East etc.
4. Our technicians can go abroad for after sales service

Application:
Widely used in stone processing industry, tombstone processing industry, mold processing industry, all kinds of art relief, decoration industry, ceramic processing, advertising industry; be applied for the 3D relief of marble, jade, granite, tombstones, milestone, sandstone, ceramic tiles, glass, bluestone and other stone materials, or for 2D sculpture, cutting, chamfering, drillings, etc.
