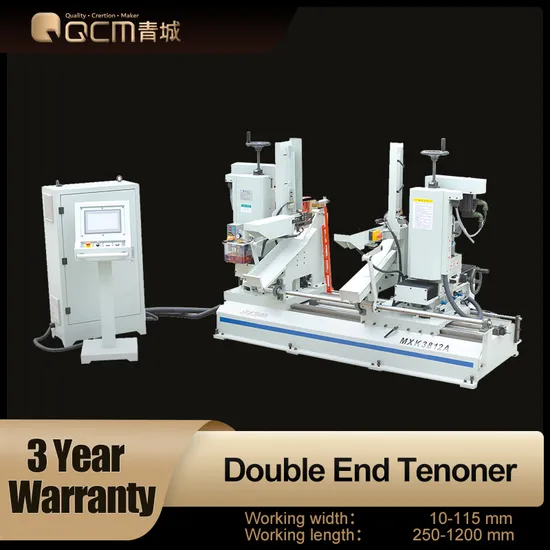

MXK3812A Double End Tenoning Trimming Machine Woodworking Machinery Made In China Factory Manufacture Wooden Dovetail Double End Tenoner Cut

Product Description

MXK3812A Double End Tenoning Trimming Machine Woodworking Machinery Made In China Factory Manufacture Wooden Dovetail Double End Tenoner Cut Product Parameters

Technical Parameter
Model	Double End Tenoning Machine	Unit	MXK3812A
Specifications	Working length	mm	250-1200
	Working width	mm	10-115
	Maximum processing thickness of tenon	mm	10-60
	Max.tenon length	mm	40/70
	Milling tenon speed	r/min	12000
	Milling spindle dia.	mm	Φ30
	X-axis rotation Angle	°	-5°-+15°
	Y-axis rotation Angle	°	±15°
Motor Power	Total motor power	kW	12.8
	Milling spindle motor power	kW	3.7*2
	X-axis motor	kW	1*2
	Y-axis motor	kW	1*2
Pressure & Diameter	Vacuum port diameter	mm	2*Φ100
Dimensions & Weight	Overall dimensions	mm	2650*1400*1700
	Weight	kg	1950

Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity.

2. Siemens and Schneidr electrical products and appliances insure the whole machine run well with a stable performance.
3. Feeding guide rail is cast with sectional combination structure. 1300mm long feeding area has a feature of easy assembling, stable precision, especially suitable for large size work piece.
4. Worktable width movements uses imported linear guide and CNC automatic width setting structure which has feature of easy adjustment, precise positioning and excellent wear ability.
5. Up pressing mechanism is configured with NC electric lift, ensuring the stable pressing and more convenient and quick
operating.
6. The operating system is equipped with an imported computer touch screen and PLC for joint control, which is intuitive and convenient to operate, which can effectively reduce adjustment time and improve production efficiency.
7. Feeding chains are configuration with high precision synchronous chain, aluminum alloy chain plates and rolling bearing structure, ensuring the stable running, accurate positioning, stable and reliable.
Product Description
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.

---
