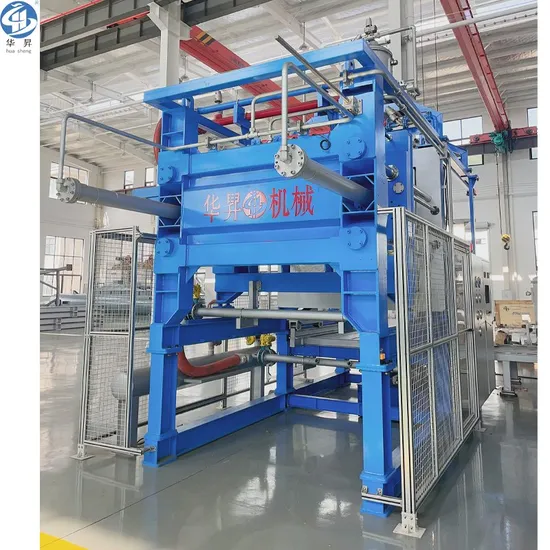

Expanded Polystyrene Machinery Fast Mould Change Type Factory Direct Sale

Product Description

expanded polystyrene machinery fast mould change type factory direct sale Product Description
Fast mold change shape moulding machine main features:
The machine is welded by steel plate and tempered at high temperature to prevent deformation and improve corrosion resistance by shot blasting and rust removal; The whole production process is automatically controlled by PLC programmable controller and touch screen; All major components are of well-known international or domestic brands Fast mold change shape moulding machine data:

Item	unit	HS-YJKH-1500	HS-YJKH-2000
Mould size	mm	1500*1300	2000*1550
Max. product height	mm	250	250
Steam pipe inlet	mm	DN80	DN100
Cooling water inlet	mm	DN80	DN80
Compressed air inlet	mm	DN65	DN65
Mould drain pipe size	mm	DN40*3	DN40*3
Machine drain pipe size	mm	DN125	DN150
Power	kw	14.5	17.2
Machine size	m	6.7*3.1*7.2	6*3.6*7.2
Machine weight	kg	12000	15000

Flow chart
Detailed Photos
Company Profile
Zhejiang Huasheng Machinery Equipment Co., Ltd, located in Fuyang, Hangzhou City, China, is a manufacturer
for high-end EPS foam machinery and EPS moulds.
Huasheng has developed into a modern and standardized production base with an area of over 18, 000 square meters,
more than 100 employees and a team of highly qualified and educated researchers, and obtained 15 invention patents.
The main products include high-precision automatic pre-expander machine, fully automatic shape molding machine ,
EPS block moulding machine, EPS foam mold, EPS lost foam white area equipment etc.
We warmly welcome all customers and friends from both domestic and abroad.

Company show
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or trading company?
A: We are a factory of EPS machine and EPS mold.
Q: what is your payment term?
A: 30% down payment upon order confirmation, 70% balance payment before shipment.
Q:what is your delivery time?
A: It takes usually 45-60days for machines, and 25-30days for EPS mold.
Q: Do you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.

---
