Basic Info.
Power Type
Series Motor DC
Electric Winch Model
Truck Winch
Working Voltage of Electric Winch
Low Voltage
Applicable Environment
Mountain Road
Certification
TUV, GS, CE
Transport Package
Carton and Pallet
Production Capacity
10000 Sets Per Month
Product Description
Product Description
Pure copper motor and power cable, waterproof control box, steel gears 12V DC 20000 lbs rated line pull 7.6HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 358:1 ratio 11.5mmx26m steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake One year warranty 20000LB WINCH SPECIFICATIONS
| Rated Line Pull | 20000LBS (9090kgs) |
| Motor | 5.7kw/7.6hp, series wound |
| Control | Remote switch, 9.8ft(3.0m) |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 358:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ3.5"(88)mm×(8.7")221.5mm |

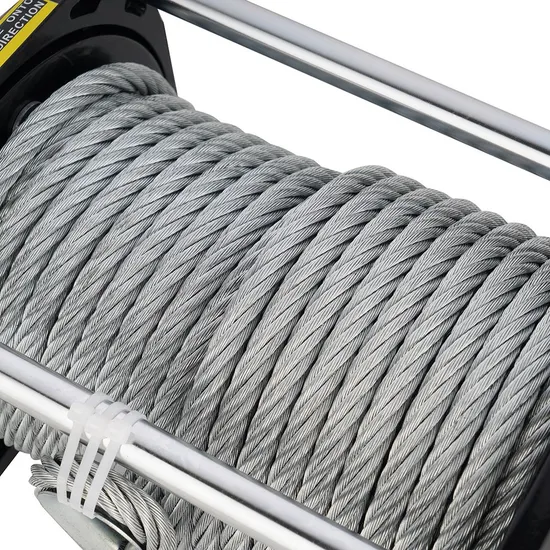

| Cable | Φ11.5mmX26m |
| Overall Dimensions | 605mm×216mm×255mm |
| Mounting Bolt Pattern | 253mm×114mm |
| Weight | N.W.54kg G.W.55Kg |
| Packing Size | 655×235×410mm |
PULL, SPEED, AMPERES, VOLTS
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 21.1(6.5) | 80 |
| 6000(2700) | 12.0(3.7) | 230 |
| 12000(5443) | 8.8(2.7) | 320 |
| 16000(7200) | 5.8(1.8) | 370 |
| 20000(9090) | 4.6(1.4) | 420 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull
lbs(kgs) | Total Rope on Drum
ft(m) |
| 1 | 20000(9090) | 16.3(5) |
| 2 | 17962(8147) | 36.4(11) |
| 3 | 15061(6832) | 60(18.4) |
| 4 | 12966(5881) | 85(26) |
Detailed Photos
