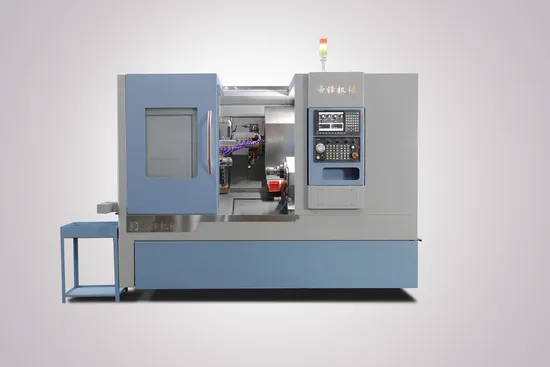

Two Spindle CNC Lathe Grinder Machine for High Precision Milling Machining Center

Product Description

Two Spindle CNC Lathe Grinder Machine for Metal Best Price CNC Milling Machining Center
Product Description
Two spindle CNC machine tools are advanced CNC machine tools that are characterized by having two independent spindles that enable efficient machining operations. Two spindle CNC machines are widely used in many fields, such as aerospace, automotive and textile fields. Its high speed and high precision can meet the high requirements for machining in these fields.

Project	Name	specification	Unit
Process range	Max bed rotating diameter	Φ400	mm
	Maximum processing length	500	mm
	Maximum processing diameter (shafts)	Φ75 Φ45	mm
	Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2	X / Z / Y axis travel	500 / 600 / 100	mm
	X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
	Repetition accuracy X / Z / Y	±0.003	mm
	Position accuracy	±0.005	mm
Movement	X / Z / Y	30/30/28	mm
	X2 / Z2 / Y2	24/30/18	mm
Screwdriver	X / Z / Y	32/36/40	mm
	X2/Y2/Z2	32/33/25	mm
Rails	X / Z / Y	35/35/30	mm
	X2/Y2/Z2	30/35/25	mm
Turrets	Turrets	12T
	Turning tool specifications	25X25(rectangular)
	Bore cutter specification	Φ25 Φ32	mm
Spindle	Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
	Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
	Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System	Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
	X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
	X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
	Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension	Length/Width/Height	2700 X 1950 X 2050	mm
	Heavy	4.9	T

Detailed Photos
• Simultaneous machining of two workpieces: the dual spindle CNC machine can machine two workpieces at the same time, greatly improving the machining efficiency.
• High-precision machining: the machine tool has high requirements on machining precision, and can meet particularly fine cutting requirements, such as internal and external precision, roundness, coaxiality and so on.
• Multiple processes: the machine can simultaneously complete a variety of multiple and complex processing procedures, including a variety of radial and axial cutting, drilling, tapping, hobbing, scribing, drawing and so on.
•Precision Spindle with High Precision, High Performance and High Stability
•The spindle set is made in Taiwan. The main shaft grab tool is based on the butterfly spring on the main shaft, and the tension is applied to the pull nail of the tool handle through the four-jaw broach mechanism, which is closely matched with the taper hole of the main shaft to realize the grab tool.
• The use of low inertia spindle motor, short acceleration time, improve tapping speed and quality. Spindle direct drive, with spindle orientation function.
•Lead Screw
All three axes use C3 grade precision screws with pre tensioning design, effectively suppressing temperature rise and prolonging, ensuring repeated positioning accuracy.
•Line Track The three axes all adopt P-grade roller type rail, which achieves high rigidity and high load capacity in four directions through contact between the rolling element and the sliding rail line
Anoher Advantages
Excellent processing conditions and good production environment Imported horizontal machining center, vertical machining center, CNC boring machine (rotating table) and gantry guideway grinding machine, effectively ensure the accuracy of the workpiece, greatly improve the assembly accuracy, and the durability of the accuracy.
Advanced detection methodsPositioning accuracy test and best correction with laser, using strict German VDI3411 inspection specification (5 times each)
Each machine tool must go through a strict processing side test before leaving the factory to ensure that it can accept the test of actual processing and meet the corresponding processing accuracy requirements.

Product sample
• CNC machine center integrates the function of milling, drilling and tapping • CNC Machining for various size of the metal profile, such as aluminum, steel, copper and non-metal materials • CNC Vertical Machine tools is widely used in industries of 3C electronics, rail transportation, aerospace, liner module guide rail and etc.
Packaging & Shipping
FAQ
1.What's the Payment Terms?
A: T/T, 40% initial payment when order, 60% balance payment before shipment.
2.What is your trade terms?
A:FOB CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 30days. if some special machines will be some longer.You can place order accordingto delivery time and ship time we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
5. What is the package of the machines?
A:The machines standard will be packed in wood case.
6:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

---
