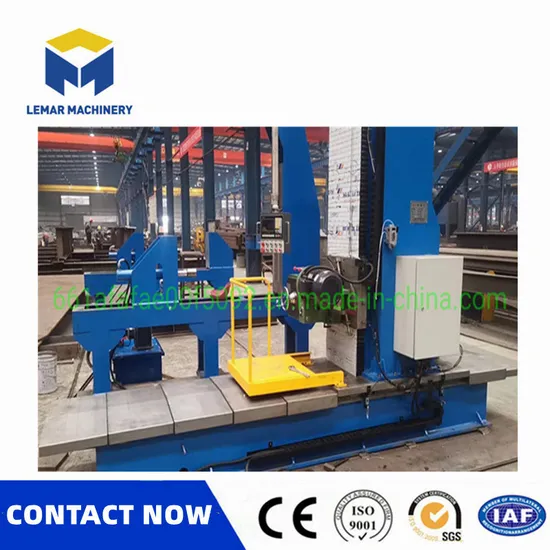

800*1000mm H-Beam Box-Beam End Face Milling Machine with Tx32 Milling Head

Product Description

800*1000mm H-beam Box-beam End face milling machine with TX32 milling head 1) H beam Box beam end face milling tool machine process concentration
It is equipped with a tool holder and a tool magazine that can automatically change the tool. The tool changing process is automatically controlled by the program, and the area is small, which saves time and labor.
2) The face milling machine (face milling) has a high degree of automation
When CNC machine tools are processed, there is no need to manually control the tool, the degree of automation is high, and the requirements for operators are reduced.
3)The H beam box beam end milling and beveling processed by CNC operators on CNC machine tools are more accurate than those processed by ordinary workers on traditional machine tools.
Technical Details:

Model	DX0810	DX1212		DX1215	DX1520	DX2020	DX2025	DX2040	DX3060
Machining range of face(mm)	800×1000	1200×1200		1200×1500	1500×2000	2000×2000	2000×2500	2000×4000	3000×6000
Horizontal the milling speed(mm/min)	50-440	50-500
Vertical milling speed(mm/min)	22-550	22-600		22-600	22-600	22-600	22-600	22-600	22-600
Horizontal motor (kw)	3	4		4	4	4	4	4	7.5
Vertical motor (kw)	1.5								2.2
Milling angle(°)	0-45
Milling Head Specifications	TX25A		TX32A				TX40A		TX50A
Milling head power (kw)	4		5.5				7.5		11
Cutter rotational speed(rpm)	125-1420		125-1440				1440		1460
Applicable cutter diameter(mm)	100~160		125~250				160~320		200~400
Gross Weight (t)	4	5.5		5.8	7.6	8.3	8.5

Scope of Supply and Components: 1.Lifting column:
TX32 milling head, lifting slide, lifting column, counterweight, lifting transmission mechanism, etc.
2.Horizontal slide table:
CNC H beam Box beam end face milling machine table, bed, feed power box, feed screw, etc.
3.Electronic control system:
Electric control box, console, imported AC variable frequency speed controller, etc.
4.Knife tool:
Pull rods, mandrels, φ125 standard milling cutters, tool loading tools, etc.
Wuxi Lemar Machinery Equipments is committed to the design and manufacture of various CNC cutting equipment, steel structure production lines, complete sets of welding equipment, and painting equipment. With advanced concepts, excellent technology, and exquisite craftsmanship, Lemar company has formed a multi-variety and multi-series product structure.
The products serve many industries such as construction machinery, construction machinery, boiler pressure vessels, steel structures, and wind power generation. Our products are exported Southeast Asia, the Middle East, Europe and the United States and many other countries.

---
