US$0.20
100,000-999,999 Watt
Basic Info.
Model NO.
jinko 460w-480w
Material
Monocrystalline Silicon
Solar Cell
Mono 156.75 * 156.75 mm
Junction Box
IP 67 or IP 68 Rated
Glass
3.2mm Tempered Low Iron
Type
Perc, Half Cell, All Black, Mbb, 144cell Solar Pan
Panel Efficiency
20.49-21.38%
Frame
Anodized Aluminium Alloy
Front Glass
3.2mm High Transmission Tempered Glass
Transport Package
31PCS in a Carton
Specification
2182*1029*35mm
Production Capacity
800MW/Years
Product Description

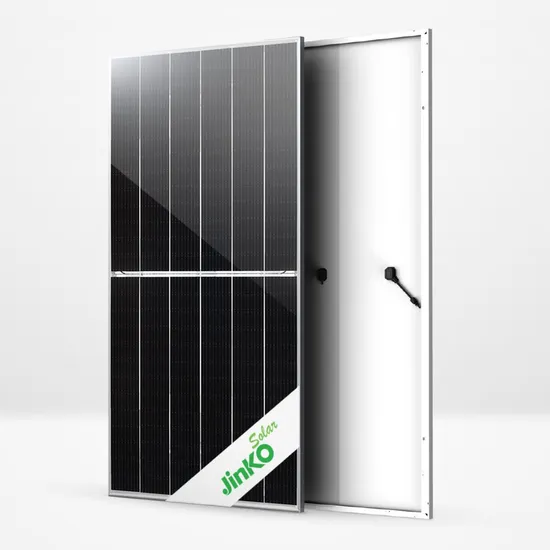

Jinko Solar Mono 460w -480w Solar Panel
Product Description
Product Parameters
| Module Type | JKM460M-7RL3
JKM460M-7RL3-V | JKM465M-7RL3
JKM465M-7RL3-V | JKM470M-7RL3
JKM470M-7RL3-V | JKM475M-7RL3
JKM475M-7RL3-V | JKM480M-7RL3
JKM480M-7RL3-V |
| | STC NOCT | STC NOCT | STC NOCT | STC NOCT | STC NOCT |
| Maximum Power (Pmax) | 460Wp 342Wp | 465Wp 346Wp | 470Wp 350Wp | 475Wp 353Wp | 480Wp 357Wp |
| Maximum Power Voltage (Vmp) | 43.08V 39.43V | 43.18V 39.58V | 43.28V 39.69V | 43.38V 39.75V | 43.48V 39.90V |
| Maximum Power Current (Imp) | 10.68A 8.68A | 10.77A 8.74A | 10.86A 8.81A | 10.95A 8.89A | 11.04A 8.95A |
| Open-circuit Voltage (Voc) | 51.70V 48.80V | 51.92V 49.01V | 52.14V 49.21V | 52.24V 49.31V | 52.34V 49.40V |
| Short-circuit Current (Isc) | 11.50A 9.29A | 11.59A 9.36A | 11.68A 9.43A | 11.77A 9.51A | 11.86A 9.58A |
| Module Efficiency STC (%) | 20.49% | 20.71% | 20.93% | 21.16% | 21.38% |
| Operating Temperature(ºC) | '-40ºC~+85ºC |
| Maximum System Voltage | 1000/1500VDC (IEC) |
| Maximum Series Fuse Rating | 20A |
| Power Tolerance | 0~+3% |
| Temperature Coefficients of Pmax | -0.35%/ºC |
| Temperature Coefficients of Voc | '-0.28%/ºC |
| Temperature Coefficients of Isc | 0.048%/ºC |
| Nominal Operating Cell Temperature (NOCT) | 45±2ºC |
Product process
Packaging & Shipping
Certifications
ny Profile What we provide
Project Cases
FAQ What's your payment terms?
TT,Letter of Credit,Paypal,Western Union etc.
Could you send free sample? Your sample fee will be returned when your place next order.
Can we print our own logo? Yes absolutely.
What are the advantages of your company? We are new factory ,now we control thin benifit for developing customers , price ,quality and service will never let customers down!!
>>
