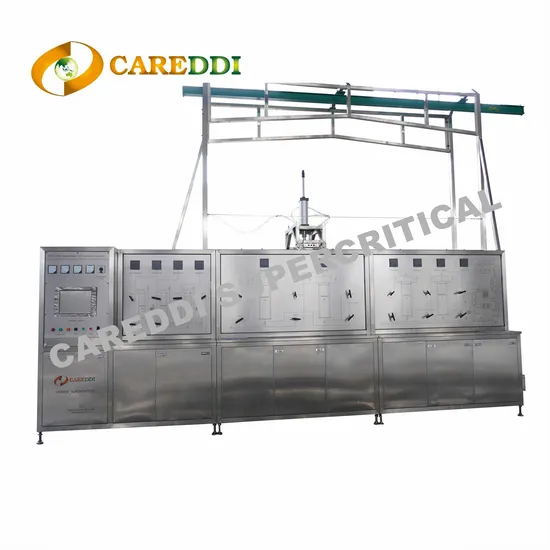

Essential Oil Extractor 200L Supercritical CO2 Extraction Machine

Product Description

Product Description
What is supercritical fluid co2 extraction machine? Supercritical fluid extraction is the most advanced physical extraction technology in the world, referred to as SFE (supercritical fluid extraction).

At a lower temperature, when the pressure of the gas is continuously increased, the gas will be converted into a liquid. When the pressure increases, the volume of the liquid will increase. For a specific substance, there is always a critical temperature (Tc) and a critical pressure ( Pc), above the critical temperature and critical pressure, the substance will not become liquid or gas, which is the critical point. In the range above the critical point, the state of matter is between gas and liquid, and the fluid in this range is called supercritical fluid (SF). Supercritical fluid has strong penetrating power similar to gas and high density and solubility similar to liquid. It has good solvent characteristics and can be used as a solvent for extraction and separation of monomers.

Supercritical fluid extraction (SFE) is a high-tech emerging in modern chemical separation. SFE combines traditional distillation and organic solvent extraction, and uses the excellent solvent power of supercritical CO2 to effectively separate, extract and purify the matrix and the extract.
SFE uses supercritical CO2 to extract materials. CO2 is a safe, non-toxic and cheap liquid.

Supercritical CO2 has a diffusion coefficient similar to that of a gas, a solvency of a liquid, and zero surface tension. It can quickly penetrate into solid substances and extract its essence. It is highly efficient, not easy to oxidize, Pure natural, no chemical pollution and so on.

Supercritical fluid extraction and separation technology utilizes that the dissolving ability of supercritical fluid is closely related to its density, and the density of supercritical fluid can be greatly changed by changing the pressure or temperature. In the supercritical state, the supercritical fluid is contacted with the substance to be separated, so that it selectively extracts the components with different polarity, boiling point and relative molecular mass in sequence.
Detailed Photos

Product Parameters
1. Main Technical Parameters of supercritical co2 extraction machine 200Liter

SN.	Part Description	QTY	Techinical Parameters
1	Extraction Vessel	4	Volume: 50Lx4 Designed pressure: 40MPa Maximum work pressure: 38MPa Material: Stainless steel 304 Equipped with jacket water circling heating system, temperature adjustable, equipped with material barrel for both liquid and solid material
2	Material Cylinder	1	Material: Stainless steel 304
3	Separation Vessel	2	Volume: Separation Vessel 1: 27Liter Separation Vessel 2: 17Liter Maximum work pressure: 18MPa Material: Stainless Steel 304 Equipped with jacket water circling heating system, temperature adjustable
4	CO2 High pressure pump	1	Triple plunger pump, flow rate: 600L/H (frequency adjustable) Maximum work pressure: 40MPa, pump head with cooling system
5	Solvent pump	1	Flow rate: 0.25-20L/H (frequency adjustable) Maximum work pressure: 20MPa
6	Cooling system	1	Cooling capacity: 5100Kcal/h (air cooling) Temperature range: -5ºC~+5ºC (meet process requirement)
7	Heat exchange system	4	Material: Stainless steel 304 Type: Φ14/40MPa, Φ18/30MPa With circulating water jacket heating system, adjustable temperature
8	Purification system	1	Volume: 5Liter Material: Stainless steel 304 Maximum work pressure: 16MPa
9	CO2 Storage tank	1	Volume: 29Liter Material: Stainless steel 304 Maximum work pressure: 16MPa
10	Flow rate meter	1	Metal tube float flow meter 1200/16MPa (Digital indication)
11	Temperature control system	4	Temperature range: Room temperature~75ºC adjustable Accuracy: ±1ºC
12	Safety valves	5	Safety valves at extraction vessels, separation vessels, overpressure automatic relief.
13	Over-pressure gauge	1	Pressure gauge at high pressure pump outlet, overpressure protection.
14	Control panel	1	Material: Stainless steel 304
15	Main Machine frame & Operation desk	1	Material: Stainless steel 304
16	Pipelines	1	Valves, fittings: DW14, DW18 All parts connected with fluid material are made by 1Cr18Ni9Ti Stainless steel.

2. Pressure regulation method: We have many different pressure regulation method, like: (1). Manual pressure regulating: by using famous brand pressure regulating valve with high accuracy. (2). Automatic pressure regulating: famous brand automatic pressure regulating, which is easier and more convenient to operate. (3). Full automatic supercritical co2 system: the whole system is full automatically, which is our newest technology and trend. 3. Customer self-provided
3 Phase electricity power: 75kw
Installation dimension: 7000×4500×4500mm, plus operation space.
CO2 gas: Food grade≥99.5%, single bottle net weight ≥22KGS.
Food grade alcohol ≥99.5%
4. Drawing of Supercritical co2 extraction machine 100Liter

5. Application of Supercritical CO2 Extraction machine Careddi supercritical co2 machines are widely used to extract industrial hemp oil for the pharmaceutical industry. It is also widely used in food industry: it can be used to make the extraction of various flavoring agents, such as various spices commonly eaten in southeast Asian countries. Extract ginger oil, lycopene, chilli oil, etc., which often made in India and Sri Lanka. In addition, also dabbled in the cosmetics industry and health products industry , can be extracted from a variety of essential oil products.
Usually used for: Hemp, Botanicals, Terpenes, Flavonoids, Bioactives, broad-spectrum oils, hop extracts, nut & seed oils, oleoresins, coffee oil, coffee decaffeination, algae oil, biofuel oils, press cake residuals, upcycling food waste, supercritical drying, aerogel production, remediation of oil-contaminated soils, etc.

Different models

	Capacity	Model	Extractor and Separator
1	0.5L	Model 0.5Lx1/50MPa	1 Extraction 2 Separation
2	1L	Model 1Lx1/50MPa	1 Extraction 2 Separation
3	2L	Model 2Lx1/50MPa	1 Extraction 2 Separation
4	5L	Model 5Lx1/50MPa	1 Extraction 2 Separation
5	5L+1L	Model 5L+1L/50MPa	2 Extraction 2 Separation
6	10L	Model 5Lx2/50MPa	2 Extraction 2 Separation
7	20L	Model 10Lx2/40MPa	2 Extraction 2 Separation
8	30L	Model 15Lx2/40MPa	2 Extraction 2 Separation
9	50L	Model 25Lx2/40MPa	2 Extraction 2 Separation
10	100L-1	Model 25Lx4/40MPa	4 Extraction 2 Separation
11	100L-2	Model 50Lx2/40MPa	2 Extraction 2 Separation
12	120L	Model 30Lx4/40MPa	4 Extraction 2 Separation
13	180L	Model 30Lx6/40MPa	6 Extraction 2 Separation
14	200L	Model 50Lx4/40MPa	4 Extraction 3 Separation
15	300L-1	Model 50Lx6/40MPa	6 Extraction 3 Separation
16	300L-2	Model 150Lx2/40MPa	2 Extraction 3 Separation
17	600L	Model 150Lx4/40MPa	4 Extraction 3 Separation
18	1200L	Model 300Lx4/35MPa	4 Extraction 3 Separation
19	2000L	Model 1000Lx2/35MPa	2 Extraction 3 Separation
20	3000L	Model 1500Lx2/35MPa	2 Extraction 3 Separation
21	4000L	Model 2000Lx2/35MPa	2 Extraction 3 Separation
22	6000L	Model 3000Lx2/35MPa	2 Extraction 3 Separation
23	150Lx3	Model 150Lx3/35MPa	3 Extraction 3 Separation
24	300Lx3	Model 300Lx3/35MPa	3 Extraction 3 Separation
25	500Lx3	Model 500Lx3/35MPa	3 Extraction 3 Separation
26	600Lx3	Model 600Lx3/35MPa	3 Extraction 3 Separation
27	1000Lx3	Model 1000Lx3/35MPa	3 Extraction 3 Separation
28	1500Lx3	Model 1500Lx3/35MPa	3 Extraction 3 Separation
29	2000Lx3	Model 2000Lx3/35MPa	3 Extraction 3 Separation
30	3000Lx3	Model 3000Lx3/35MPa	3 Extraction 3 Separation

Customized models are available for different pressures, temperatures and volumes. We can make higher pressure according to your request, even to 100MPa (1000bar, 14503 psi)
Packaging & Shipping
Our packing: Export Plywood case packing, fixed well, seaworthy packing.
Company Profile
Careddi Supercritical, specialized in study and production of sci-tech equipment and instruments, is a leading manufacturer and provider for supercritical co2 extraction machine, supplying the clients worldwide with high reputation supercritical co2 extraction machine of latest technology, as well as competitive price for various kinds of material oil extraction.

Working with the experts and scholars from famous universities and institutes in China for more than 30 years, now Careddi Supercritical has achieved great progress in supercritical co2 extractor field, able to make series supercritical co2 extraction products, from small scale for lab testing, to large industrial scale for biomass production.

Till Now, we have sold supercritical co2 extraction machines mainly to USA, Canada, Spain, Greece, Hungary, Netherlands, Slovenia, Albania, Swiss, Sweden, Poland, Lithuania , Latvia, Belgium, France, Italy, Bulgaria, Hungary, Romania, Serbia, Ukraine, Argentina, South Africa, Lebanon, Turkey, Uganda, Conga, Malawi, Madagascar, Jamaica, Columbia, Zimbabwe, Colombia, Malaysia, India, Thailand, Australia, Pakistan, Morocco, Israel, Chile, Sri Lanka, Britain, Indonesia, Tunisia, Russia, etc.

USA and European countries are our main markets, and almost of the machines sold there are for hemp oil extraction. Thus, we have rich experience in hemp oil making by supercritical co2 extraction machine, as well as post-extraction procedures.

With machine qualified by certificates, as CE, ASME, ISO9001, characterized by strong technology force, advanced technology and assembly equipment as well as prefect after-sales service, Careddi Supercritical will be your best choice for plant extraction solution.
Our Advantages
CAREDDI supercritical co2 extraction machine advantages 1. Temperatures and pressures easily adjusted and precisely controlled.
2. High-efficiency CO2 pump, can pressurize quickly.
3. CO2 can be recovered and reused.
4. Easy operation of the equipment.
5. Best after sales service, including: installation, commissioning, and training on site.
6. Higher temperature and pressures can be achieved.
7. Abundant experience with cases more than 50 countries.
8. Available models from Lab scale to industrial scale(100ml to 3000L)
9. Short lead time within 30 days.
CAREDDI Supercritical CO2 extraction machine successful cases around the world
Until now, we have worked with customers nearly 50 countries around the world, like USA, Canada, Spain, Greece, Hungary, Netherlands, Slovenia, Albania, Swiss, Sweden, Poland, Lithuania , Latvia, Belgium, France, Italy, Bulgaria, Hungary, Romania, Serbia, Ukraine, Argentina, South Africa, Lebanon, Turkey, Uganda, Conga, Malawi, Madagascar, Jamaica, Columbia, Zimbabwe, Colombia, Malaysia, India, Thailand, Australia, Pakistan, Morocco, Israel, Chile, Sri Lanka, Britain, Indonesia, Tunisia, Russia, etc.
FAQ
Q1:Is co2 extraction organic?
A1:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q2: Why is co2 better than ethanol?
A2: CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q3: Is co2 extracted botanical oil safe?
A3: CO2 extraction is also a safe and effective way to make botanical oil. It remains one of the most popular hemp extraction methods in the industry, thanks to the combination of safety and cost-effectiveness.
Q4: How does supercritical co2 extraction work?
A4: To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q5: Can we conduct an extraction test before buying?
A5: Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.

---
