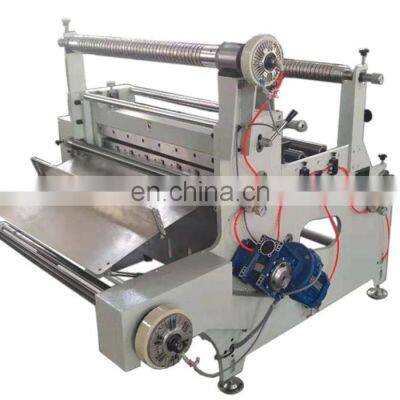

Product DescriptionDP-500 Label and film sheet cutting and rewinding machineDP-500 Label and film sheet cutting and rewinding machine Function characterision :Machine adopted imported PLC overall control with touch screen display ,simple and ease of operation. Fast cutting speed,highprecision. Scope applicable:It is applicable for the cutting of PVC film ,insulation sheet,Mylar,foam ,industrial tape, electronic tape and various inchsetting ,entirely broken and paritially broken electronic materials.Technical parameters:Item NumberDP-360CQDP-500CQDP-600CQWeb Width0-360mm0-500mm0-600mmCutting length0-9999.99mm0-9999.99mm0-9999.99mmCutting speed0-130 cut/min0-130 cut/min0-130 cut/minCutting precision±0.05mm±0.05mm±0.05mmVoltage220V/380V220V/380V220V/380VSize1280*920*1300mm1280*1150*1070mm1500*1300*1200mmWeight240kg270kg320kgTotal Power1.5kw1.5kw1.5kw*the voltage can customize according to your country standards.Features:Taiwan brand servo motor & Japan brand mitsubishi PLC;Touch screen control panel,easy to operate;Can preset and adjust the cutting length ,total cutting quantity and speed;Afer the machine shutting down,it still can remember the amount automatically;Cutting tolerance can be reach ±0.1mm based on material;Optional function:Kiss cut (half-cut)Hot cuttingStatic electricity eliminatorCutting with position sensorApplication:Sizing cutting for conductive fabric, foam , diffuser, reflector film, double-sided adhesive tape, nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.Optional DevicesKiss cutting Material:Utility knife and fixtureThis unit can finish kiss cutting .Below anvil is connected with springs,which could absorb shock and make sure the kiss cutting well.Easy to adjust and maintain.Photo sensorIf added photo sensor for cutting machine,it can cut thr printed material.the photo sensor will sense the printed marking and make sure the cutting blade cut the material at a specified place.ANTISTATIC SYSTEMBEFORE AND AFTER THE CUTTING BLADE CAN ADD THE ANTI-STATIC SYSTEM ANTI-STATIC SYSTEM MOTORAfter Sales Service Free sample testing and video for your reference Prompt delivery whthin 24 hours One year warranty ,whole life technical support Free training in our factory available before delivering machinesEngineers available to service machinery overseas Technical support: Professional engineers team to help you design a drawing of machine to get highest profit with lowest cost and offer you technical support any time.Other demanded spare part or equipment support: Plenty of cooperated professional supplier for spare parts or other necessary equipments make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.BUYING GUIDEIf you want to ask for quotation ,please tell us details information as much as you can ,so we can quote to you as soon as possible .MaterialPictures are appreciated if possible Diameter ID & OD Thickness mm Weight KGLength you want to cut mmWidth mmitemvalueApplicable IndustriesManufacturing Plant, paper/label/protective film factoryVoltage220V50HZDimension(L*W*H)1200*900*1280mmWeight400kgWarranty12monthsProduction Capacity50 m/minKey Selling PointsEasy to OperateMax. workable width500mmMachinery Test ReportProvidedVideo outgoing-inspectionProvidedMarketing Typehigh precision machineWarranty of core components12 monthsCore ComponentsMotor, PLCPLC BrandMITSUBISHIMax feeding width500mmCutting area400wCutting speed110m/mSize1200*900*1280MMWeight400kgprecision+/-0.1mmPrower220v50HZServo driverMitsubishiCutting materialspaper/protective film/label
>>
