Heavy-Duty 50 Ton Diesel Forklift for Industrial Use

Product Description

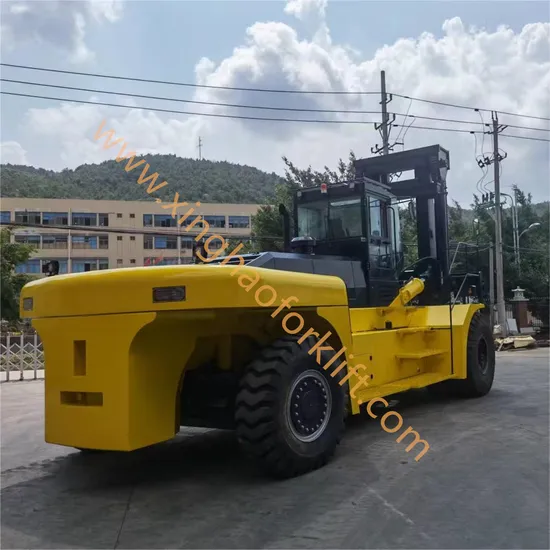

50 Ton Container Diesel Forklift
The 50 ton container diesel forklift is specially designed for lifting heavy loads in industrial plants, dock yards and rail transit stations. Highly efficient and safe.
A 50 Ton Container Diesel Forklift is a type of heavy-duty material handling equipment designed for use in container handling and other demanding applications. It typically uses a diesel engine for power and is equipped with a hydraulic lifting mechanism for raising and lowering loads. The 42 Ton weight capacity refers to the maximum weight the forklift can lift and move safely.
A 50 Ton Container Diesel Forklift is a type of heavy-duty material handling equipment designed for use in container handling and other demanding applications. It typically uses a diesel engine for power and is equipped with a hydraulic lifting mechanism for raising and lowering loads. The 42 Ton weight capacity refers to the maximum weight the forklift can lift and move safely.
These types of forklifts are commonly used in ports, terminals, and other environments where large containers and heavy loads need to be moved and stacked. They are also widely used in construction, mining, and other industries where heavy loads need to be moved and handled efficiently. The combination of high weight capacity, power, and versatility make them an essential tool for many businesses.
Main features of 50 tons container forklifts:Drive Axle
Made in China, customized, heavy-duty master reducer, pneumatic brake system.
Gear-box
Zhong nan gearbox, multi-stage torque converter, big converter ratio, a wide range of auto-adjust speed; stable and smooth shift, 2 stage forward and 1 stage backward, easy operation and maintenance.
Steering System
Xinghao-made crosswise steering axle; The steering with load sensor and adjustable steering device makes the operation easy.
Hydraulic System
Multi-hydraulic valves make it easy to operate. Load sensor hydraulic system, dual pumps supply, dynamic load sensor priority valve, reduce power consumption, lower the hydraulic oil temperature.
Chassis
The combined chassis structure provides the high intensity and low weight feature, increasing the cooling area of the oil tank greatly.
Power System
The customer can choose the Cummins turbo 6-cylinder engine or the Yuchai engine which according to the GB3 Emission Regulation, has high performance, low oil consumption, low speed with high torque, and great capacity cooler.
Brake System
Adopt auto parts, the air braking system improves comfort and also reduces the pollution caused by oil leakage.
Lifting Assembly
Wide view mast provides great operator visibility; Dual limited speed valves increase safety; Distance between forks can be adjusted manually is the standard feature, customers can choose fork positioners or side shifters.
Overhead Guard
A full suspension overhead guard connected the chassis with 4 pivots using the rubber; a Tilted structure is easy for maintenance; a Smaller column and steering wheel increases the operator space.
Electrical System
The instrument shows all information about the forklift; it will sound alert when low brake pressure or a non-lease parking brake.
Standard Specification
Heater and air conditioner, Hour meter, Bracket of light
Cabin, Traction pin, Headlight
Horn, Mirror, Toolbox
Forks, Charge indicator, Combination rear light
Pre-heat indication, Wide view duplex mast, 4 Sec. multi-way valve
Hydraulic power steering, Rubber pedal, Dipstick
Air cleaner, Adjustable steering wheel, Tilt cylinder self-locking valve
Side roller, Mast lift speed limited valve
Options
2.5-6.0m duplex mast, Special carriage and backrest, Solid tire, Other dimension forks, Other attachment, Fire extinguisher, Suspension seat
Dual air cleaner or special air cleaner, Rear working light, Customer painting.

Item	Descripstion Specifications		Unit	Parameter
General	Model			CPCD500
	Power Type/model			Diesel
	Rated Capacity		Kg	50000
	Load Center		mm	1250
Dimensions	Lift Height		mm	4000
	Fork Size(LxWxT)		mm	2600×300×130
	Fork Spread(outside)(Min./Max)		mm	910/2830
	Mast Tilt Angle(F/R)		deg	6·/12·
	Fork Overhang		mm	1180
	Length without forks		mm	8170
	Overall Width		mm	3600
	Mast Lowered Height		mm	5040
	Overhead Guard Height		mm	3820
	Outer turning Radius		mm	7730
Performance	Travel(Unload/Load)		km/h	30/26
	Lifting(Unload/Load)		mm/s	300
	Max.gradeability(Load)		%	20
	Max.drawbar pull(Load)		KN	240
	Service Weight		kg	58000
Wheels&Tires	Front Tire Size			4X18.00-25-28PR
	Rear Tire Size			2X16.00-25-28PR
	Front wheel Tread		mm	2495
	Rear wheel Tread		mm	2880
	Wheelbase		mm	5500
	Ground Clearance(Under mast)		mm	400
Power&Transmission	Battery	Voltage/Capacity(5HR)	VA/h	2X12/150
	Engine	Model		WP12G375E350
		Manufacturer		WeiChai
		Rated Output	Kw	276
		Rated Torque	N.m	1550
		No.Of Cyinder		6
		Bore*stroke	mm	126x155
		Displacement	L	11.6
	Transmissions	Manufacturer		ZL80
		Stage FWD/RVS		4/4
	Operating Pressute		Mpa	21

Q:What about the warranty time?
A:12 months after shipment or 2500 working hours.
Q:Can you support OEM/ODM service?
A:XingHao support customized products, OEM and ODM are acceptable.
Q:How long is the production lead time?
A:40-60 days for customized products.
Q:Are you looking for an agent/dealer?
A:Definitely,XIngHao has performed for 20 years,We are welcoming dealer from worldwide.

---
