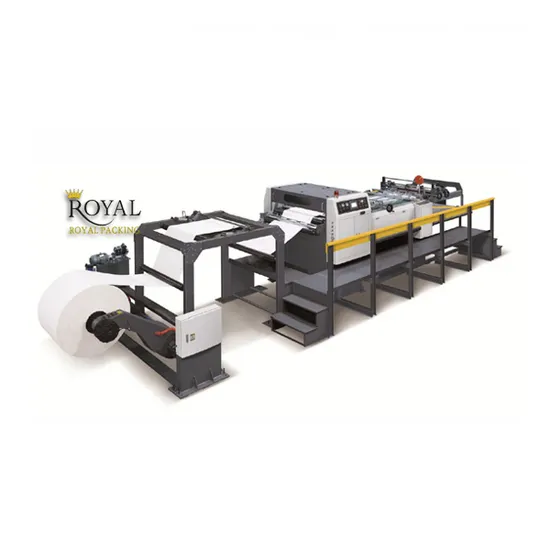

Rysm-1400 Double Helix Knife Paper Sheet Cutting Machines

Product Description

RYSM serials servo precision high speed sheet cutter machine can make the roll paper into sheet, slitting, repair paper edge, and ensure high precision and quantity.RYSM serials servo sheet cutter machine have abundant hardware configuration, it is almost nearly suitable for any product's requirements.
(1)it adopts nodular cast iron(model:QT500-7),paper rack arm, special casting processing, high strength,non deformation, ensure the safety of the paper rack arm.
(2)it adopts steel material (Q335),machine's body deal with special machining, high strength,ensure body non deformation.
(3)the whole set of machine are all adopt NSK /SKF brand bearing .
(4)the machine use the Schn*ider , Omron, SMC brand etc.
(5)the delivery belt adopts Japan brand.
(6)the precision of sheet are: +0.5mm,the Max. cutting speed of SM model are 300sheet/min;300m/min; .
(7)the rotary knife blade adopt Germany material, high precision, non deformation,easy adjustment.
(8)it adopts automatic diagnal system, let it diagnol quickly.
(9)it equipped with automatic anti-curve adjustment device , ensure the paper flat quickly when adjust it.
(10)delivery unit: it adopts prepare press device,let the paper no wadding.
(11)touch screen : it shows in Chinese and English.

1. Main Technical Parameters:

Machine Model	RYSM-1400 Model
Maximum width of roll	1400 mm
Thickness of cutting paper	60-1000GSM
Machine weight	About 13000kg
Max. scroll diameter	1800mm(71")
Power supply	380v/220v/50Hz (three phases) can be made according to customer's customer
Max. cutting speed 300 cuts/min	300 cuts/min
Cutting Length	450--1400mm
Cutting Precision	cutting length 1000mm: ±0.3mm; Cutting length>1000mm: ±0.1%
Cutting speed	300m/min
The request for air compressor	0.8Mpa
The format of slitting	2 sheets
Height of stacking	≤1500mm

---
