Factory Good Price Lifting Equipment 500kg 1000kg Air pneumatic Hoist 4 Bar 6 Bar with G80 Chain

US$169.00-299.00 1 Piece (MOQ)

Basic Info.

Application

Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane

Type

Air Hoist

Sling Type

Chain

Lift Speed

2.7-20m/Min

Maximum Lifting Height

3-8m

Chain Falls

Condition

New

Color

Product Name

Air Hoist

Applicable Industries

Hotels, Garment Shops, Building Material Shops

Usage

Construction Hoist

Core Components

Motor, Bearing, Gearbox, Engine

Lifting Speed

2.7-20m/Min

Full Load of Descent

5-38m/Min

Lifting Height

Lifting Capacity

0.16-2t

Showroom Location

None

Power Source

Pneumatic

Weight (Kg)

40 Kg

Empty Lifting Speed

5-42m/Min

Chain Size(mm)

7*21 9*21

Motor Output

0.6-2kw

Air Pressure(Bar)

4-6

Transport Package

Standard Export Packing

Specification

Pneumatic

Trademark

Rayvanbo

Origin

Hubei, China

HS Code

8425190000

Production Capacity

1000sets Per Month

Product Description

Product Description

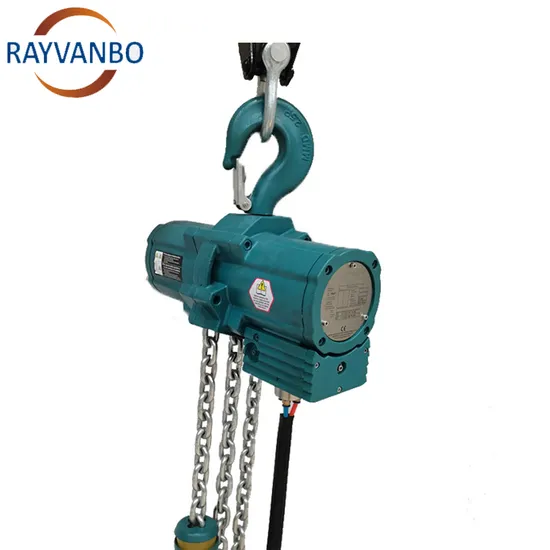

Air Hoist
250kg 500kg 1000kg Kood explosion-proof pneumatic hoist pneumatic chain hoist In the pneumatic lifting equipment,
the pneumatic chain crane uses air instead of electricity to generate electricity, which is different from the traditional
crane. Compressed air will not produce sparks and explosion-proof, so the air chain crane is suitable for hazardous
areas containing chemical powder, flammable or volatile substances.
Product Details
Product Advantages
Product Parameters

Capacity	8T	10T	12T	18T	20T
Work level	M3	M3	M3	M3	M3
Air pressure	6Bar	6Bar	6Bar	6Bar	6Bar
Lifting height	3m	3m	3m	3m	3m
falls of chain	3	4	4	3	4
Lifting motor power	3.5KW	3.5KW	3.5KW	3.5KW	3.5KW
Full load Lifting speed	1.2m/min	1m/min	1m/min	0.9m/min	0.7m/min
Full loadlowering speed	3m/min	2m/min	2m/min	1.9m/min	1.6m/min
Lifting motor air consumption	5.5cbm/min	5.5cbm/min	5.5cbm/min	5.5cbm/min	5.5cbm/min
Lifting motorAir connection	Rc1/2	Rc3/4	Rc3/4	Rc3/4	Rc3/4
Supply hose insidediameter	25mm	25mm	25mm	25mm	25mm
Lifting chain size	13*36mm	13*36mm	13*36mm	13*45mm	13*45mm
Length of control hose	3m	3m	3m	3m	3m
Sound level	79dB	79dB	79dB	78dB	78dB
Traverse motor power	2*0.25KW	2*0.25KW	2*0.25KW	0.7KW	0.7KW
Traverse speed	10m/min	10m/min	10m/min	5m/min	5m/min
Traverse motor air consumption	2*0.6cbm/min	2*0.6cbm/min	2*0.6cbm/min	1.3cbm/min	1.3cbm/min
traverse motor air connection	Rc1/4	Rc1/4	Rc1/4	Rc1/4	Rc1/4
traverse motor supply hose inside dia	G3/4	G3/4	G3/4	G3/4	G3/4
Traverse motor weight	200kg	200kg	200kg	260kg	260kg
Total weight	358kg	358kg	388kg	688kg	688kg

Product Application
Production Line
