dBm1820 CNC Horizontal Boring and Milling Lathe Y Axis

Product Description

Product Description

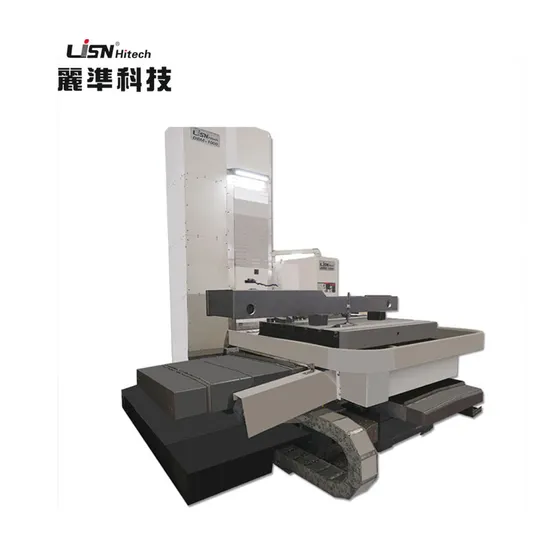

The DBM-1820 is a high rigidity and precision horizontal boring and milling machining center with high performance, It consists of a boring machine and a high precision turntable. The machine is mainly used for milling, drilling, boring, tapping, thread turning, end-face milling of various medium and small sized box parts of high accuracy requirement in industries such as aerospace, aviation, large processing machinery, mining machinery such as excavators, large generator, construction machinery, large rolling steel equipment, transportation manufacturing, etc. Fundamental parts (bed, column, headstock, etc.) are of high quality cast iron, with resin sand molding and aging treatment. Bed is of closed box structure, with reasonable arrangement of reinforcement ribs and multi-point support. Spindle bearing adopts imported famous brand high-precision angular contact ball bearing with grease lubrication. Cooling sleeve is adopted for circulate cooling to control the temperature rise of the bearing at high speed, to ensure the spindle stability. Temperature sensor is adopted to measure the temperature of the outer ring of the spindle bearing,with high temperature alarm protection.

Main Features
Overall rigidity is very excellent High performance spindle with high precision and rigidity Speed range of spindle: 35-3500RPM Worktable size: 1800mm*2200mm Mitsubishi M80 operating system Maximum tools magazine capability: 60pcs Detailed Photos

Product Parameters

ITEM	MODELS	DBM1820
WORKTABLE (WIDTH*LENGTH)	mm	1800x2200
T SLOTS	mm	24H7x150x11
MAX LOAD BEARING OF WORKTABLE	kg	15000/20000
X/Y/Z/W AXIS TRAVEL	mm	3500/2600/1500/700
SPINDLE HOLE TAPER	-	ISO50
SPINDLE SPEED RANGE	r/min	35-3000
CENTER OF SPINDLE TO WORKTABLE SURFACE	mm	0~2600
NOSE OF SPINDLE TO WORK CENTER	mm	100-2300
SPINDLE MOTOR OUTPUT TORQUE	Nm	3002/4093
X/Y/Z/W RAPID FEED SPEED	m/min	10/10/10/5
MAX CUTTING FEED SPEED	m/min	10/10 /10/8
TOOLS MAGAZINE CAPACITY	pcs	60
MAX.TOOLS ALLOWABLE WEIGHT	kg	25
MAX.TOOLS ALLOWABLE LENGTH	mm	500
MACHINE ELECTRIC CAPACITY	KVA	85
LOCATING PRECISION OF MACHINE TOOL	mm	±0.010
REPETITIVE LOACATING PRECISION OF MACHINE TOOL	mm	±0.005
MACHINE DIMENSION	mm	8450x6980x5040

Company Profile

FAQ

1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.

---
