Blind Spot Monitoring Ai Human Detection Camera System Backup Camera Reversing Camera for Truck Bus Forklift

Product Description

Product Description

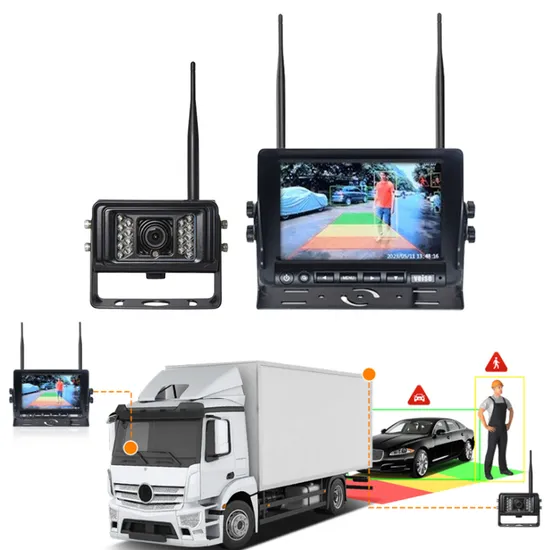

This AI-powered HD wireless camera system with 0.5T processing power ,AI-based automatic pedestrian and vehicle detection features ,Widely used in vehicle blind spot detection(BSD) monitoring .7-inch wireless monitor offering both single and split-image display options, AI-based customizable warning area settings. built-in buzzer with a three-level safety audible and visual alarm, it wirelessly auto controls the camera's power supply for energy-saving modes. The system uses multi-frequency hopping for automatic pairing, anti-interference, and offers a clear transmission range of Up to 200m Clear Line of Sight . 7-Inch Wireless AI Pedestrian & Vehicle Detecting Camera System with Pedestrian Detection Warning BSD Blind Spot Detection System The AI HD wireless camera system automatically monitors pedestrians and vehicles for early warning, with Blind Spot Detection (BSD) functionality.
7-inch IPS wireless monitor with single-screen and 2-split screen options, customizable warning area settings (adjustable up/down, left/right). Wireless monitor built-in warning buzzer. with a three-level alarm overlay. Multi-frequency hopping for automatic pairing, anti-interference, wireless transmission distance up to 200m clear line of sight . Monitor wirelessly controls wireless camera's standby and operational power supply voltage (energy-saving mode). AI human and vehicle recognition with 0.5T processing power, automatically recognize people and cars to display different logo,audible and visual alarm. AI Wireless camera automotive-grade DSP, 1 million HD pixels, starlight full-color, IP69K waterproof rating, and all-weather operation.
Can be used with a power supply box Product Parameters

Wireless Monitor Model	MWHD-772M-AI
Screen	7-Inch IPS HD Screen, Resolution: 1024xRGBx600
Viewing Angle	L/R: 85°, U/D: 85°
Contrast Ratio	800:1
Brightness	600 Cd/M²
Operating Frequency	2400 ~ 2483.5 MHz
OSD Menu Functions	Mirror/Normal Image Settings, Reverse Delay Settings, Trigger Priority
Receiving Sensitivity	≤ 86 DBm, Dual-Wire Signal Reception, 200m Open Field Transmission Range
Wireless Video Input	Supports 2 CH 720P AI Wireless Video Inputs
AI Warning	Display 3-Level Different Audible,Visual Alarm And Logo
Warning Settings	Customizable Warning Areas (Up/Down, Left/Right), AI Human/Vehicle Recognition ON/OFF
Energy-Saving Mode	Supports Wirelessly Auto Controls The Camera's Power Supply
Surge And Load Dump Protection	IS016750-2 Standard (24V System Us=174V, Ri=4Ω, Td=350ms)
Vibration Resistance	5GB/T 2423.56-2018 Standard (Random 5G Vibration)
Operating Temperature	-20°C To +70°C
Storage Temperature	-30°C To +70°C
Input Power	DC 8-32V (5W Max)
Dimensions (W X H X D)	220mm X 150mm X 85mm (Excluding Antenna)
Mounting Method	U-Bracket Mount

Wireless Camera Model	CWHD-151MLP-AI
Sensor	1/2.9 CMOS
Pixel	1920(H) X 1080(V)
Resolution	720P
Transmit Power	18 DBm
Operating Frequency	2400 ~ 2483.5 MHz
Transmission Distance	Up To 200m Clear Line Of Sight
AI Functions	Supports AI Human And Vehicle Recognition With 0.5T Computing Power
Power Saving Function	Standby Current As Low As 1mA
Operating Temperature	-20°C To +70°C
Storage Temperature	-30°C To +70°C
Input Power	DC 8-32V (Max 3W)
Dimensions (W X H X D)	91.6mm X 75mm X 71mm (Excluding Bracket And Antenna)
Mounting Method	U-Bracket Mount

Detailed Images
Our Company
R & D
Quality Control The light intensity analyzer ensures that the output light intensity of LED warning light conforms to ECE R65; The patented sealed pressure tester to ensure that the waterproof level of the camera and light conforms to IP69K; Certifications
