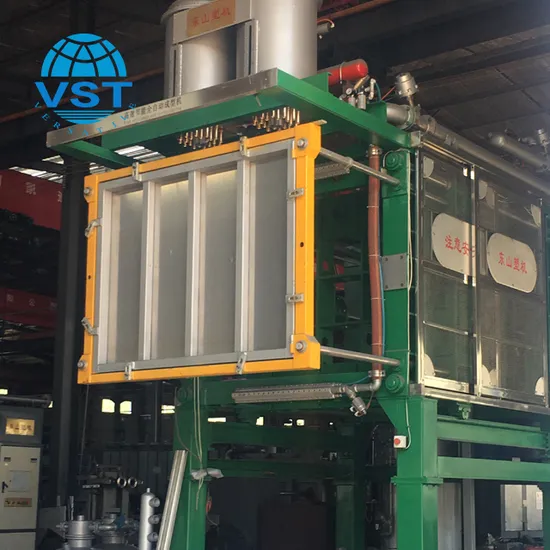

EPS Foam Cases Styrofoam Box Shape Molding Machine

Product Description

Main features
1. The machine adopts PLC and touch screen and advanced moulding technique and can produce various shape of EPS products;
2. The machine adopts pressurized filling, featuring high speed and full feeding. Totally 25 to 37 automatic filling guns can be installed;
3. The machine adopts digital coder to control mould opening and closing stroke, controlled by PLC and easy to adjust; Mould opening and closing is actuated by hydraulic system;
4. The vacuum system can accelerate moulding speed, reduce cooling time and decrease moisture content of the product;
5. Hydraulic systems adopts differential fast device, improve the speed of moving mould journey to a maximum ofabout 200mm per second, saving energy comsumption over 40%.
6. Most of the main component are of world-famous brand, with reliable performance, stable quantity, long service life and low maintenance cost;
7. Automatic shape moulding machine with vacuum, the body of machine is welded steel plate, greatly improve the steel and hardness of the whole machine.
8. The screen adopts human interface design with easy opration and parameters setting.
9. The horizontal double switch chamber of the machine adopts material switch control system, greatly reduced as a result of raw materials result in waste probability.
10. The machine sets up particular drainage, vacuum system, meanwhile, improve the capacity drainage, vacuum system, meanwhile, improve the capacity of drainage.
11. Vertical vacuum chamber with spray devices, greatly improve the efficiency of the vacuum.

Item		Unit	FAV1200	FAV1400	FAV1600	FAV1750
Mould Dimension		mm	1200*1050	1400*1250	1600*1350	1750*1450
Max Product Dimension		mm	1050*900*420	1250*1100*420	1400*1200*420	1600*1300*420
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3''(DN80)	4''(DN100)	4''(DN100)	4''(DN100)
	Consumption	Kg/cycle	5~7	6~9	7~11	8~12
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Cooling Water	Entry	Inch	2.5''(DN65)	3''(DN80)	3''(DN80)	3''(DN80)
	Consumption	Kg/cycle	45~130	50~150	55~170	55~180
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Entry	Inch	1.5''(DN40)	2''(DN50)	2''(DN50)	2''(DN50)
	Consumption	m³/cycle	1.5	1.8	1.9	2
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Drainage		Inch	5''(DN125)	6''(DN150)	6''(DN150)	6''(DN150)
Capacity15kg/m³		S	60~120	70~140	70~150	80~150
Connect Load/Power		Kw	9	12.5	14.5	16.5
Overall Dimension(L*W*H)		mm	4750*1750*3130	4750*1920*3250	4700*2030*3450	4700*2030*3450
Weight		Kg	5000	5500	6000	6000

Machines in Customers'factories
We have machines in America,Romania,Ukrain,Uzbekstan,Mexico,Malta,Russia,Indonesia,Malaysia,India etc.We have EPS sample factories in Indonesia,India,Uzbekstan,Turkey,Malta,Bulgaria,Russia etc.
Our Company:
Hangzhou Fuyang wealth Imp&Exp Co.,Ltd is a company specially dealing with EPS machines, molds and spare parts. Having strong technical team, we help clients to design their new factory and supply whole turn-key project to them, also we help old EPS factories to improve their production by reducing energy consumption and increasing production capacity. Apart from that, we offer the service of designing.

---
