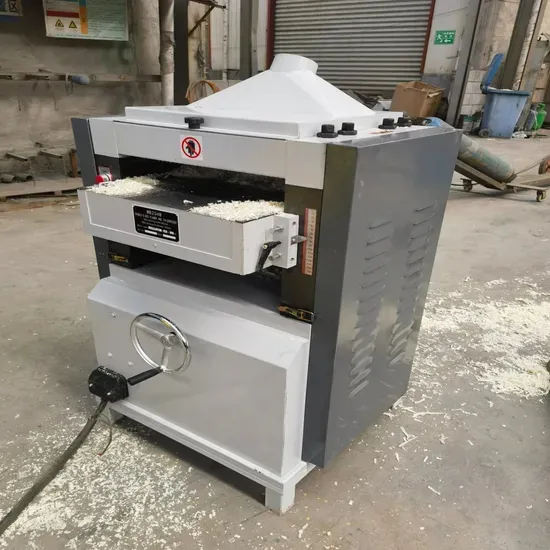

MB104A Single-Side Thick Sheet Woodworking Machine Pressure Planer

Product Description

Light Duty Planer

Product Function

Automatic feed
votage 220v/380v
Suitable for Soft Wood, Dry Wood
Cutter straight cutter/helical sprial cutter
High accuracy High efficiency Long service life

Product Specification

Specification	MB102K	MB103K	MB104K
Max planing width	200mm	300mm	400mm
Max pressing thickness	130mm	160mm	160mm
Min planing thickness	5mm	5mm	5mm
Max planing depth	3mm	3mm	3mm
Spindle speed	10000r/min	10000r/min	10000r/min
Min planing length	120mm	120mm	120mm
Feeding speed	7-10m/min	7-10m/min	7-10m/min
Motor power	2.2kw/380v/220v	2.2kw/3kw/380v/220v	3kw/220v
			4kw/380v
Over dimensions	530*350*1080mm	530*350*1080mm	610*530*1100mm
Machine weight	160kg	190kg	220kg

Specification	MB104E	MB106E	MB108E	MB1010E	MB1300E
Max planing width	430mm	630mm	840mm	1040mm	1300mm
Max pressing thickness	200mm	200mm	210mm	210mm	200mm
Min planing thickness	5mm	5mm	10mm	10mm	8mm
Max planing depth	5mm	5mm	5mm	5mm	4mm
Spindle speed	5600r/min	5600r/min	5000r/min	5000r/min	4500r/min
Min planing length	200m	200mm	220mm	220mm	300mm
Feeding speed	9m/min	9m/min	8m/min	8m/min	8m/min
Motor power	4kw/380v	7.5kw/380v	7.5kw/380v	11kw/380v	15kw/480v
Over dimensions	900*930*1300mm	900*1130*1300mm	805*1230*1050mm	805*1430*1050mm	1205*1670*1470mm
weight	380kg	480kg	700kg	980kg	1650kg

Specification	MB103	MB104	MB105	MB106	MB107
Max.planing width	300mm	400mm	500mm	600mm	700mm
Max. Thickness of planing workpiece	120mm	120mm	120mm	120mm	120mm
Min.thickness of planing workpiece	10mm	10mm	10mm	10mm	10mm
Min.length of planing workpiece	200mm	200mm	200mm	200mm	200mm
Feeding speed	13.5m/min	13.5m/min	13.5m/min	13.5m/min	13.5m/min
Max. Planing output	4mm	4mm	4mm	4mm	4mm
Planing circle diameter of blade axle	Ø77	Ø77	Ø77	Ø77	Ø77
Spindle speed	4500r/min	4500r/min	4500r/min	4500r/min	4500r/min
Motor power	1.5kw/380v/220v	2.2kw/380v/220v	2.2kw/380v/220v	3kw/380v	4kw/380v
				3kw/220v	3kw/220v
Overall dimensions (mm)	650*650*950	750*650*950mm	850*660*950mm	950*660*950mm	105*660*950mm
weight	135kg	160kg	178kg	195kg	213kg

Detail Photos

Package and delivery

FAQ

Q1. Can I order samples from your company?
Yes, we welcome sample orders to test and check the quality.

Q2. What about delivery time?
It takes about 3-10 days for samples, and about 1-2 weeks for mass production after order confirmation
Q3. Do you support OEM or ODM?
Yes, our main products and services are OEM&ODM, we always provide our customers with high-quality OEM&ODM servicel
Q4. How do you ship your goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. Usually it takes 7-10 days to arrive. Air and sea are also optional.
Q5. What payment methods do you support?
We accept multiple payment methods such as PayPal, Visa, MasterCard, Alipay Trade Assurance, Western Union and T/T.
Q6. How to place an order for a product?
First let us know your requirement or application.
Secondly, we quote according to your requirement and purchase quantity. Then confirm with you and deposit the deposit
Formal order. Fourth, we arrange production.

---
