US$2.20-50.00
|
5 Pieces
(MOQ)
|
Basic Info.
Model NO.
ball nose end mill
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Suitable for
Steel,Stainless Steel, Cast Iron
Transport Package
1PC in a Plastic Tube, 10PCS in a Group
Origin
Changzhou Jiangsu China
Production Capacity
50000PCS/Month
Product Description

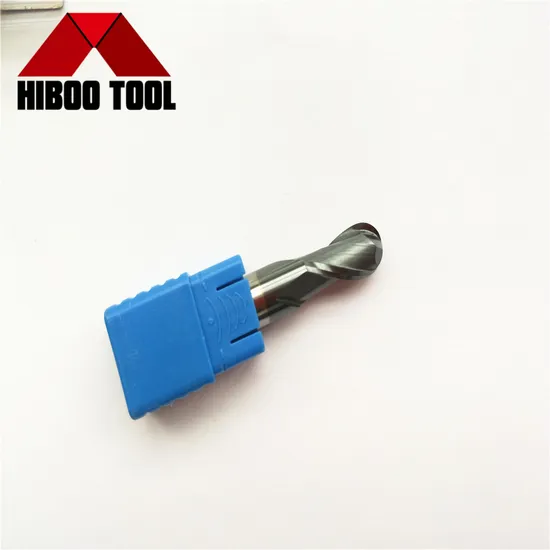

HRC45 Mirco Grain Ball-nose end mill
2Flutes
Helix angle: 30°
Upto: HRC50 High Speed
1. Super-Fine Micrograin carbide rod:
WC=90%, Co=10%, TRS>3800N/mm2; Hardness>91.8HRA, Grain size: 0.5um; High qulaity of wearability and impact
2. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
3. Super TiAlN, reduce the coeffiction of friction, and improve the tools life much.
4. Each end mill is inspected by Zoller measuring and inspected machine.
5. We accept the specification as your requirement.
6. Work Piece: Carbon steel, alloy steel, cast steel, tooling steel, mould steel,
heat-treament steel. Aluminum alloy steel, Non ferrous alloy
(Order No)
| Cutting
| Shank
| Flute
| A. 0. l
|
d
| D
| l
| L
|
R0.5× 2× 4D× 50L × 2F
| 1
| 4
| 2
| 50
|
R0.75× 3× 4D× 50L × 2F
| 1.5
| 4
| 3
| 50
|
R1.0× 4× 4D× 50L × 2F
| 2
| 4
| 4
| 50
|
R1.25× 5× 4D× 50L × 2F
| 2.5
| 4
| 5
| 50
|
R1.5× 6× 4D× 50L × 2F
| 3
| 4
| 6
| 50
|
R1.75× 7× 4D× 50L × 2F
| 3.5
| 4
| 7
| 50
|
R2.0× 8× 4D× 50L × 2F
| 4
| 4
| 8
| 50
|
R2.5× 10× 6D× 50L × 2F
| 5
| 6
| 10
| 50
|
R3.0× 12× 6D× 50L × 2F
| 6
| 6
| 12
| 50
|
R3.5× 14× 8D× 60L × 2F
| 7
| 8
| 14
| 60
|
R4.0× 16× 8D× 60L × 2F
| 8
| 8
| 16
| 60
|
R4.5× 18× 10D× 75L × 2F
| 9
| 10
| 18
| 75
|
R5.0× 20× 10D× 75L × 2F
| 10
| 10
| 20
| 75
|
R5.5× 22× 12D× 75L × 2F
| 11
| 12
| 22
| 75
|
R6.0× 24× 12D× 75L × 2F
| 12
| 12
| 24
| 75
|
R7.0× 28× 14D× 100L × 2F
| 14
| 14
| 28
| 100
|
R8.0× 32× 16D× 100L × 2F
| 16
| 16
| 32
| 100
|
R9.0× 36× 18D× 100L × 2F
| 18
| 18
| 36
| 100
|
R10× 40× 20D× 100L × 2F
| 20
| 20
| 40
| 100 |
>>
