| US$544.00-598.00 | 3 Sets (MOQ) |
| Specification | |

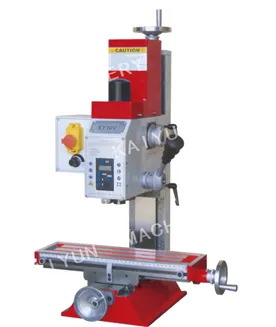

| MODEL | KY16V |
| Drilling capacity | 16mm |
| Face milling capacity | 63mm |
| End milling capacity | 20mm |
| Spindle taper | MT2 |
| Sleeve travel | 50mm |
| Low speed stage | 50-1125 rpm |
| High speed stage | 100-2250 rpm |
| Head rotation | ±90° |
| Table size | 400x120mm |
| X-axis travel | 220mm |
| Y-axis travel | 160mm |
| Z-axis travel | 210mm |
| T-slot | 10mm |
| Load of table | 55 kg |
| Motor | 600W |
| Packing size | 500x450x760mm |
| Net weight | 60kg |
| Standard Accessories | |
| Speed display | 1 set |
| Depth ruler | 1 set |
| Drill chuck 3-16mm | 1 set |
| Arbor MT2/B16, M10 | 1 set |
| Optional Accessories | |
| Stand & chip tray | |
| Keyless drill chuck 3-16mm | |
| ER25/6pcs collet chuck (4-16mm) | |
| 2-way angle vise-50mm | |
| End mill 7pcs (4-16mm) | |
| 58pcs of clamping kits/M10*11.7mm | |
| X-axis Power feed | |
