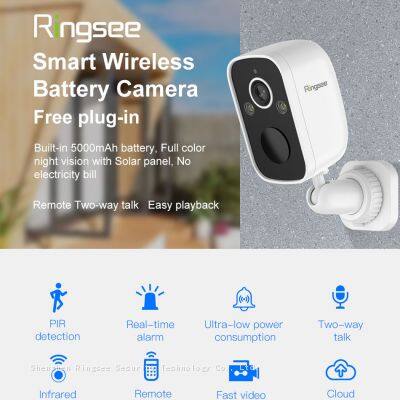

SHRS-SOC-9101
|
System
|
operating system
| linux
|
Active Users
| 4 users watching online simultaneously
|
APP
| OKAM PRO Overseas Edition
|
Collection
|
Processor
| T23
|
Memory
| 512Mb
|
Image Sensor
| GC2083, 200W,1/3CMOS
|
Min illumination
| 0.8Lux/F1.４ (color mode), 0.3Lux/F1.4 (black and white mode)
|
Lenses
| Standard lens diameter 14mm
|
Sensor Performance
| Support automatic white balance, automatic gain control, automatic backlight compensation
|
Viewing Angle
| D130° diagonal
|
Video
|
Night Vision
| Black and white night vision, dual filter automatic switching, 6 850nm infrared lights, night vision 5-10 meters
|
Compression Standard
| H.264 /MJPEF/JPEG
|
Multi-stream
| Main stream: 1296P/15fps Sub stream: 360P/15fps
|
IR Control
| IR is on and the night vision function is enabled, and infrared and ICR are automatically detected; IR is off and the night vision
function is disabled, infrared is always off, and ICR is fixed in day vision mode
|
Bitrate
| CBR/VBR two bit rate control modes, and the output bit rate range is 128～4096kbps
|
Image Adjustment
| Brightness, contrast, vertical, horizontal adjustable, OSD display
|
Audio
|
Enter
| Built-in -38dB microphone
|
Output
| Built-in 8Ω1W speaker
|
Sampling frequency
| 8KHz/16bit
|
Compression standard
| G711A
|
AI
|
Humanoid Detection
| Human detection, filtering invalid event alarms
|
Area Detection
| Customize monitoring area to monitor only the area that users are concerned about
|
Smart Notification
| Different devices push different sounds, knowing exactly which device is triggered
|
Intelligent Alarm
| Set different device alarm sounds according to different scenarios
|
More AI features
| Pets, vehicles, packages, etc.
|
Network
|
Network Protocol
| TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P，IPV4, etc.
|
Wireless network
| IEEE802.11b/g/n
|
Wireless frequency
| 2.4~2.4835GHz
|
Wireless security encryption
| 64/128-bit WEP/WPA-PSK/WPA2-PSK Data encryption
|
Wireless connectivity
| AP hotspot network configuration, QR code network configuration, Bluetooth network configuration
|
Button
|
Button 1
| Power button
|
Reset button
| Long press to restore factory settings
|
Storage
|
External TF card
| Support T-Flash card (up to 256GB)
|
Cloud Storage
| Free cloud storage, 1 day in China, 3 days abroad
|
Alarm
|
Alarm detection
| PIR infrared human motion detection
|
Physical Standards
|
Charging voltage
| DC5V±5%
|
Powered by
| Built-in 5000mAh battery power supply, 2*18650, supports external 5V solar panel
|
Power consumption
| Sleep current 260uA, working: 230-360mA
|
Work Environment
| Working temperature: -10～55℃, working humidity
|
Weight
| Gross weight: TBD (Note: subject to the actual product)
|
Size
| 79*68*88.5mm
|
Packing list
| Monitor*1, bracket*1, MICRO USB*1, manual*1, (solar panel*1, solar panel bracket*1 optional)
|
