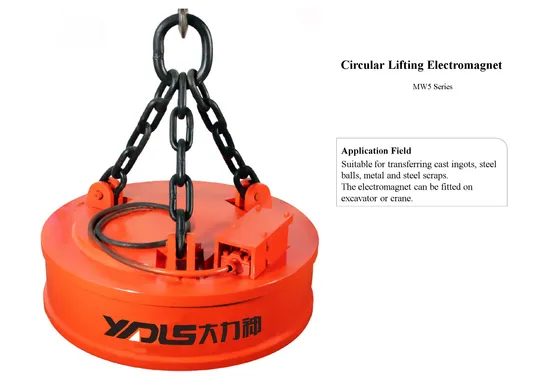

Mobile Crane Circular Electro Lifting Magnet for Steel Scrap Equipment

Product Description

Lifting Electromagnet MW5 Series for handling steels, working as lifting appliance of traveling electric crane, mobile crane/ lifting truck, excavator etc.
Functions: Handling casting ingots, steel balls and other steel scraps.
Options:
A. Normal temperature lifter
B. High frequency lifter
C. High temperature lifter
General Specifications:
Conductor/Coil: Aluminum or Copper
Shape: Round, oval and/or square
Power: 3.3~33.9 kw
Lifting capacity (kg)
-steel ball: 2500~26000
-hot steel ingot: 200~3800
-cold steel ingot: 380~4800
-hot steel scraps: 100~2250
-cold steel scraps: 120~2850
1. The electromagnet is sealed up, with good moisture and dust proofing.
2. Structure of magnet is reasonably designed and optimized, features light weight, strong attraction force and low energy consumption.
3. Energizing coils to generate magnetic strength is processed with special technology, to improve its electrical and mechanical property. Insulation Grade of coils is F to H for longer service life.
4. The energizing ratio is increased from 50% to 60% or 75%, with higher effectiveness.
5. With special heat-protection method, materials up to 700 degree centigrade can be handled by the lifting magnet.
6. Considerate design for easy and convenient installation, operation and maintenance.
7. Complete scope of supply, including control panels, cable, cable reels, lifting chains, beams and battery sets.
Note: Products in different configuration are available
Packaging & Delivery
Packaging Detail:Iron Case or Polywood Case.
Delivery Detail:Within 20 days since the date of receipt of deposit.
Specifications
1. High lifting capacity, light self-weight
2. insulation grade can be up to F
3. Low power consumption, long service life
Applications
Suitable for transferring cast ingots, steel balls, metal and steel scraps.
The electromagnet can be fitted on excavator or crane.
Features
The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
High lifting capacity, light self-weight.
Low power consumption, long service life.
Technical data
Three types for option:
1. Normal temperature type (DC-220V TD-60%)
2. High frequency type (DC-220V TD-75%)
3. High temperature type (DC-220V TD-60)

Model	Diameter (mm)	Current (A)	Power (kW)	Lifting capacity (cold/hot state) (kgs)
				Steel ball	Steel ingot	Steel scrap
MW5-70L/1	700	15	3.3	2500	380/200	120/100
MW5-80L/1	800	18	3.96	3000	480/250	150/130
MW5-90L/1	900	26.6	5.85	4500	600/400	250/200
MW5-110L/1	1100	35	7.7	6500	1000/800	450/400
MW5-120L/1	1200	45.5	10	7500	1300/1000	600/500
MW5-130L/1	1300	54	11.9	8500	1400/1100	700/600
MW5-150L/1	1500	71.2	15.6	11000	1900/1500	1100/900
MW5-165L/1	1650	75	16.5	12500	2300/1800	1300/1100
MW5-180L/1	1800	102.4	22.5	14500	2750/2100	1600/1350
MW5-210L/1	2100	129	28.4	21000	3500/2800	2200/1850
MW5-240L/1	2400	154	33.9	26000	4800/3800	2850/2250

More details, please contact us directly.
