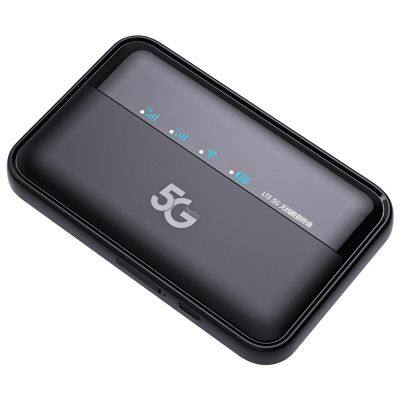

| Description | 10000 mAH battery Wifi 6 SA NSA portable router 5g |
| Item no. | HY83A |
| CPU | MT6877 2*A78 (2.4GHz)+6*A55 (2.0GHz), GPU: Mali OTR MC4 |
| Memory | LPDDR4X 2GB RAM+EMMC 32GB ROM |
| WiFi chipset | MT6635 |
| Bluetooth | Bluetooth 5.1 |
| OS Version | Android 11 |
| LCD | no |
| Touch panel | no |
| LED indicator | 1*5G signal, 1*4G signal, 1*Wifi, 1*Power |
| Protocol | 3GPP Rel.15, 5G NR, SA/NSA, Sub 6G/LTE Category 18 |
| Frequency | 5G NR: N1/N3/N5/N7/N8/N20/N28/N41/N77/N78（N41/N77/N78 UL 2MIMO） 4G FDD: B1/B3/B5/B7/B8/B20/B28 4G TDD: B34/B38/B39/B40/B41 |
| Throughput | NR：Downlink/Uplink up to 2.77Gbps/1.25Gbps LTE：Downlink/Uplink up to 1.2Gbps/150Mbps WCDMA：Downlink/Uplink up to 42.2Mbps/11.5Mbps |
| Antenna | 4*4 MIMO |
| Wifi band | 2.4G&5.8G, DBSC(2*2), DBDC(1*1) |
| WiFi Protocol | 802.11a/b/g/n/ac/ax |
| WiFi speed | 802.11a：Up to 54Mbps 802.11b：Up to 11Mbps 802.11g：Up to 54Mbps 802.11n：Up to 300Mbps 802.11ac: Up to 866Mbps 802.11ax: Up to 1201Mbps |
| Wifi antenna | 2*2 |
| WiFi users | 16 |
| SIM card | Single SIM card, hot plugging supported |
| Button | 1*Power + 1*RESET |
| USB | TYPE-C USB2.0(testing port) |
| Charge | TYPE-C, 5V/2A |
| Polymer battery | 10000 mAh |
| Size | Unit size: 130*82*18.5mm, N.W.: 225g Box size: 163*114*53mm, G.W.: 365g |
| Environment | Operating Temperature：-20℃～+50℃ Storage Temperature:-40℃～+70℃ Humidity：5％～95％（Non condensation） |
