Bench Type Drilling Milling Machine ZAY7032 Good Quality Best Price

Product Description

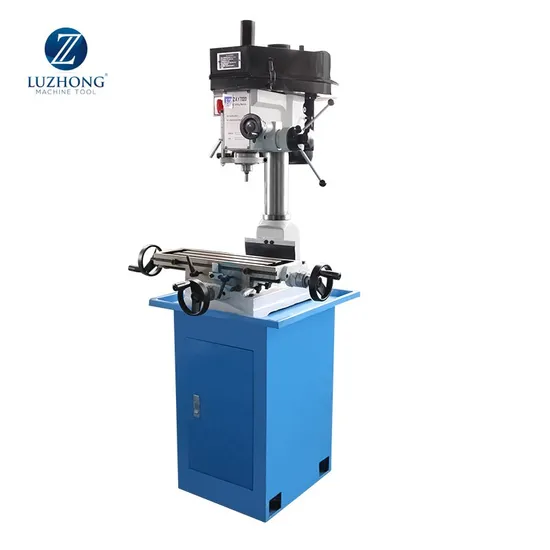

Luzhong mini hobby metal high quality ZAY7032 drilling and milling machine
Product Description
Product Parameters
The main performance characteristics:
driven and round column
Milling, drilling, tapping. Boring and reaming
Headstock swivels 360 horizontally
Micro feed precision
12 steps speed
Adjustable gibs on table precision
Posive spindle lock
Strong rigidity, powerful cutting and precisely positioning
Standard accessories:
Allen wrench,Drift ,Spanner,Drill chuck rod,Screw-driver,Draw bar and gasket
Optional accessories:
Stand,Oil basin,Power feed attachment,Machine vice,Drill chuck,Milling cutter holder,Reducing sleeve,Mill chuck,Boring rod,Tapping electrical system ,Coolant system
Product main technical parameters:

Model		ZAY7032
Drilling capacity		32mm
Face milling capacity		63mm
End milling capacity		20mm
Distance from spindle nose to table		450mm
Min.distance from spindle axis to column		203.5mm
Spindle travel		130mm
Spindle taper		M.T.3 or R8
Step of spindle speed		12
Range of spindle speed	50Hz	80-2080 r.p.m
	60Hz	100-2500 r.p.m
Swivel angle of headstock (horizontally)		360°
Table size		800×240mm
Forward and backward travel of table		175mm
Left and right travel of table		500mm
Motor Power		0.75KW
Net weight/gross weight		280kg/330kg
Packing size		1020×820×1160mm

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
