Tadm2532 High Speed Drilling Marking Production Line

Product Description

TADM2532 High Speed CNC Drilling & Marking Line For Angles

Efficiency Case: 250*250*32mm angle size, hole dia. 22mm, SANDVIK drill bits, rotation speed 2200rpm, one hole takes 6 seconds. One day (8 hours) gets 65 tons output. 9 minutes finish one angle length of 14 meters, with 60 holes.
1. Composition:

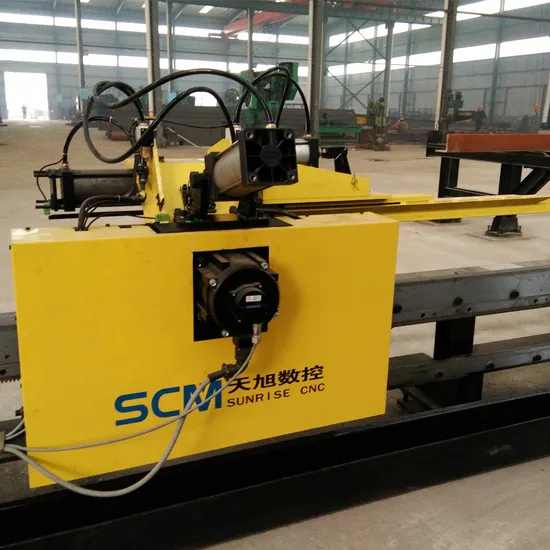

The production line is composed of infeed transfer table unit, rotating loading unit, feeding conveyor unit, marking unit, two drilling units, outfeed conveyor unit, hydraulic system and electrical control system etc.
2. PRODUCT FEATURE:
Adopt CNC technology, servo motor infeeding, with high efficiency, stable working precision.
Key hydraulic, pneumatic and electric elements are all domestic and international brand.
Easy programming and can directly use the program data made by lofting software.
Software with Chinese, English interface, easy operation, and can display the drawing of workpiece.
Loading, marking, drilling and unloading are all performed automatically.
Just need to input size of work piece, diameter of holes, stadia and quantity of workpiece when edit program, or use CAD/CAM lofting software direct conversion.
The machining line is installed with supporting &straight pressing device.
With avoided shearing functions, so as to process fixed length angles.
With self-diagnosis failures function.
Shearing unit is optional, using double blades cutting.
3. CNC DRILLING & MARKING LINE FOR ANGLES
3.1 SPECIFICATIONS:

Model	TADM2532
Angle size(mm)	140×140×10~250×250×32
Max. length of raw material (m)	14
Max. length of finished angle (m)	14
Length of loading conveyors (m)	18
Length of unloading conveyors (m)	10.8
Marking force(kN)	1030
Marking unit type	Close type
No. of character group	1
No. of character	15
Character size (mm)	14×10×19 or 20×12×19
Range of stadia (back mark)(mm)	50~220 stepless
No. of drill on each side	3
Max. drilling diameter (mm)	26
Taper of drilling spindle	BT40
Stroke of Spindle(mm)	140
Max. Spindle rotation speed(r/min)	6000
Max. feeding speed (m/min)	40
Max. moving speed of slipway of drilling head(m/min)	10
Max. feeding speed of drilling head(m/min)	14
No. of CNC axes	9
Feeding servo motor power (kW)	2
Transfer table motor power (kW)	2.2
Overturn table motor power (kW)	5.5
Hydraulic station motor power (kW)	11
Chip collector motor power (kW)	0.75
Aircompressor pressure (Mpa)	1
Overall dimensions(m)	33.3×8.9×32.5
Total power (kW)	109.7
Machine weight (kg)	≈34000

---
