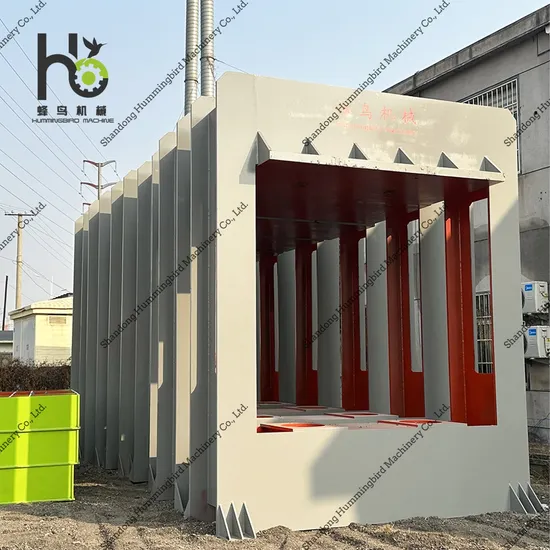

Hydraulic Cold Press Machine for Veneer Pressing Andplywood or Wood Pannels

Product Description

The cold press machine is designed to streamline the hot pressing cycle while significantly enhancing the quality of plywood. It offers customizable pressure options, including 400T, 500T, 600T, and more, tailored to meet diverse production needs. As a manufacturer with our own factory, we are able to provide competitive pricing without compromising on quality. Additionally, we welcome custom requirements-simply share your specifications, and our expert engineers will design a solution tailored to your needs. Feel free to reach out to us for more information or to discuss your project!

Product Parameters

Model	HBLY-400	HBLY-500
Nominal pressure	400T	500T
Opening Distance	1800mm	1800mm
Motor power	7.5kw+1.5kw	11kw
Working table size	1370*2700mm	1370*2700mm
Cylinders diameter	2pcs*ф320+2pcs*ф80	ф320*2pcs
Cylinders stroke	800mm	1050mm
Board feeding direction	Transverse	Transverse
Composite frame	Assembled	Assembled
Upper and bottom beam	900mm	900mm
Middle beam	400mm	400mm
Frame thickness	30mm	35mm
Weight(kg)	About 13Ton	About 14Ton
Dimension(L*W*H)	2700*1370*3700mm	2700*1370*3700mm

Applied Widely

Detail Accessories
Taiwan hydraulicstation Siemens motor.
Considerable designmaterial inlet and outlet.
Wuxi hydraulic oil cylinders
Cold press machineheavy duty frame.
Features
It is used to shorten the hot pressingcycle and improve the quality of plywood.Different pressures can be customized,400T, 500T, 600T, etc. we have our ownfactory, so we have an advantageous price ,You can also tell me your requirements formachinery, let our engineers design foryou, welcome to contact us!
Full Service Process
Pre-sale service 1.Provide the free consultation of equipment
2.Provide the standard device and the flow chart
3.According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4.Welcome to visit our factory Service during the sales 1. Inspect the machine before leaving the factory
2.Oversea install and debug the equipment
3. Train the first-line operator After sales service 1. 24 hours online service
2. Provide the VIDEO with install and debug the equipment
3. Provide technical exchanging
WHY CHOOSE US:
1.lasering your logo on products and designing logo is free 2.Delivery time within 30days 3.No else charge 4.MOQ≥1 5.Provide products quotation 6.Provide Packaging customization service 7.SupportWechat/Email/whatsapp/ 8.We specializein this field for 25 years 9.Excellent after-sale system 10.Supporting visits to factory

---
