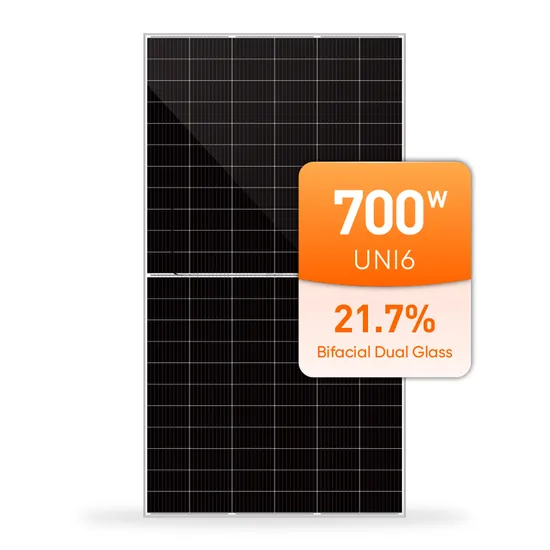

Wholesale A Grade Solar Panel 670W 700W 720W 750W Bifacial for Solar System

Product Description

Product Description

Model Number	UE675M-66H		UE680M-66H		UE685M-66H
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	675	512	680	516	685	520
Open Circuit Voltage (Voc/V)	46.3	43.6	46.5	43.8	46.7	44
Short Circuit Current (Isc/A)	18.68	15.05	18.73	15.09	18.78	15.13
Voltage at Max Power (Vmp/V)	38.4	35.9	38.6	36.1	38.8	36.3
Current at Max Power (Imp/A)	17.58	14.27	17.62	14.3	17.66	14.33
Module Efficiency(%)	21.73		21.9		22.06
Temp Coefficient of Isc	+0.04%/°C
Temp Coefficient of Voc	-0.25%/°C
Temp Coefficient of Pmax	-0.34%/°C

Model Number	UE690M-66H		UE695M-66H		UE700M-66H
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax/W)	690	524	695	528	700	532
Open Circuit Voltage (Voc/V)	46.9	44.2	47.1	44.4	47.3	44.6
Short Circuit Current (Isc/A)	18.83	15.17	18.88	15.21	18.93	15.25
Voltage at Max Power (Vmp/V)	39	36.5	39.2	36.7	39.4	36.9
Current at Max Power (Imp/A)	17.7	14.36	17.73	14.39	17.77	14.42
Module Efficiency(%)	22.22		22.38		22.54
Temp Coefficient of Isc	+0.04%/°C
Temp Coefficient of Voc	-0.25%/°C
Temp Coefficient of Pmax	-0.34%/°C

Certifications
Professional Packing
UE Project Case
Company Profile
As a world-class solar products manufacturer, United Energy specializes in research, development, production, and sales of solar PV products.
United Energy founded in 2009, National high-tech enterprise, specializing in R&D, which manufactures solar cells, modules, and PV power generation systems with global production capacity of 6.5GW, aiming at becoming "The expert of solar power generation". Serves worldwide customers with high-quality products and professional services. So far more than 10 GW United Energy' s products have been widely applied in over 150 countries.UE Production Line

---
