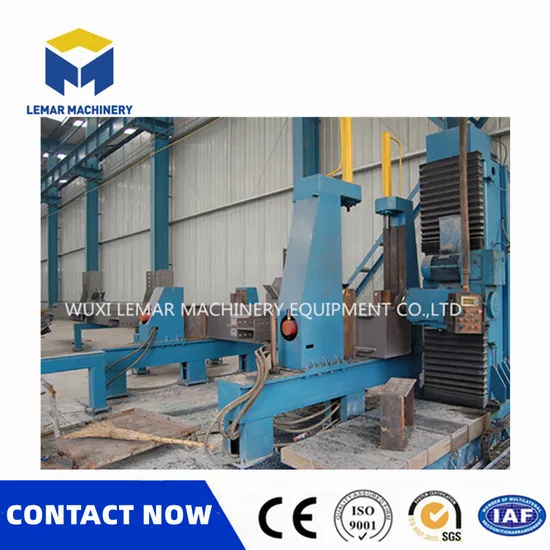

CNC Hydraulic Dx 1215 H Beam Box Beam End Face Miller Milling Machine

Product Description

Lemar Machinery Equipment H beam box beam end face milling machine can be used to process the end face of BOX column beam, H-shaped steel structure beam and other master work-pieces.
The angle of the milling power head can be manually adjusted in the vertical plane to mill the end bevel of the section steel.
There are 2 different types of H beam Box beam end face miller machine:
1.CNC Type End face milling machine for H beam Box beam steel structure and Pipe
2.Normal End face miller for H beam and Box I beam
Specification:

Model	DX 1215	DX 1530
Height of milling beam	1200 mm	1500 mm
Width of milling beam	1500 mm	3000 mm
Milling power head power	5.5 kw	7.5 kw
Vertical milling speed	55~500 mm/min
Horizontal milling speed	50~440 mm/min
Milling angle	0--45 degree
Power	AC 380V, 50 HZ, 3 P
Spindle speed of milling head	125-630 rpm
Lifting speed of milling head	500 mm/min
Milling head	TX32A
Cutter diameter	125-250 mm

Features of H beam Box beam CNC Control End face miller milling machine from Wuxi Lemar manufacturer:
1.The slide table feed and the milling head lifting of the face milling machine are all driven by the AC gear reducer produced by the high-quality reducer manufacturer.
2.The speed adjustment of the milling feed is the stepless adjustment of the Taiwan imported "Delta" AC inverter
3.Lemar H The milling head of the section steel face milling machine adopts a standard power head, which is easy to operate and quick to adjust. 4.It is one of the necessary machines for the production and processing of H-shaped steel box beams.
5.Lemar is committed to the production of H-beam automatic welding assembly and correction production line.
We provide machine quality assurance for up to 1 year.
Buyers are welcome to visit the factory at any time.
The complete set of H-beam face milling includes:
1)Lifting column:
TX32A milling head, lifting slide, lifting column, lifting transmission mechanism, etc.
2)Smoothing table:
Workbench, box beam H-beam end milling host, feed power box, etc.
Electric control system:
Electric control box, console, imported AC frequency conversion speed controller, etc.
3)Knife loading tool:
Tie rods, mandrels, standard milling cutter heads with a diameter of 125mm, tool mounting tools for face milling machines, etc.
Pre-sale service:
1. Provide basic diagram of equipment installation
2. According to customer needs, we will wholeheartedly select suitable H-shaped steel box beam end milling for customers
In-Sales and after-sales service:
1. Responsible for free end-milling wearing parts (electric box, etc.) wooden box packaging, hoisting, strapping and other services when leaving the factory
2. Follow up the production progress in real time, send pictures and videos to let customers know the production status of Lemar Machinery Company's H-beam production line in time
3. Professional technicians ensure that the installation of the CNC end milling machine is DC
4. We will repair any machine manufacturing problems (except vulnerable parts) within one year of qualified use.
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of: Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!

---
