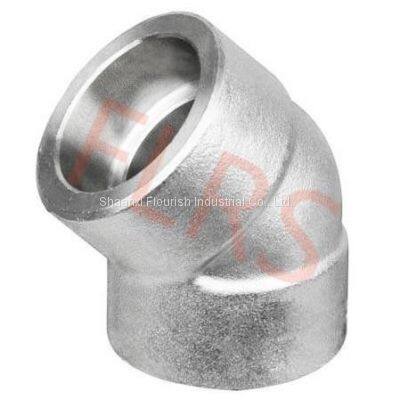

Socket Weld 45-deg Elbow Forged pipeline Fitting stainless Steel Material A182 F304 or F316 Standard ASME B16.11
The ASME B16.11 Elbow is in reference to the pipe with a sharp bend. Each custom-made elbow comes with its unique capabilities, like the Socket Weld 45 Degree Elbow is very flexible and convenient. It simplifies the overall work of fitting the custom joint. Socket Weld 45 Degree Elbow is a type of elbow that has a socket on each end. The socket weld has a recessed part into which the pipe will fit. These are usually used with smaller sized pipes.
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | 90 Deg Threaded Elbow, Threaded Elbow, Threaded Pipe elbow |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
