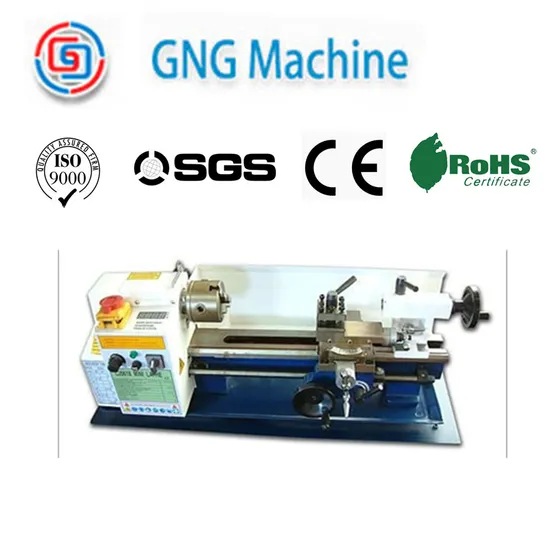

Electric High Precision Mini Type Variable Speed Lathe

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 180mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CJ0618A
Voltage: 220v
Power(W): 400w
Dimension(L*W*H): 660x310x320mm
Weight: 35kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: 81x31x32cm 40/45kg
Delivery Detail: 30-45days
Specifications
*Spindle speed readout
*High-power DC motor
*Variable speed
*Induction harden bedway
*Imported speed control unit

Technical spec.	mini engingeers lathe CJ0618A
Distance between centers	200/300/350mm
Swing over bed	180mm
Swing over cross slide	110mm
Spindle taper	MT3
Tailstock taper	MT2
Chuck diameter	80mm
Spindle bore	20mm
Cross slide travel	65mm
Tool slide travel	35mm
Range of metric threads	0.5-2.5mm
Range of imperial threads	12-52TPI
Spindle accuracy	0.01mm
Spindle speed	50-2500/100-2500RPM
Power of motor	400W/550W
Voltage/Frequency	230V/50Hz or 120V/60Hz
Net weight	35/38/40kg
Gross Weight	38/42/45kg
Packing size	660/760/810x310x320mm
Product featues	*This precision mini lathe is designed is to pretorm various types of processing jobs. Counter turming, drilling, threading and cutting jobs on materials made up of round bar and bar maerials can be performed with this machine can be used in areas such as mini precision parts processing, sample processing and modeling works. *This machine is DC motor drived. *CJ0618A speed readout mini lathe-spindle speed is inflnltely variable from 50-2500RPM*The feed speed can be adjusted according to the requirement of different workpieces.

---
