UK EU France Germany Italy Plug in Power Socket Watt Meter Electricity Meter Energy Meter Energy Monitor

Product Description

KA-PM02 UK EU France Germany Italy Plug in power socket watt meter Electricity meter energy meter energy monitor Specification:
1. Operating Voltage: 220-240V 50/60Hz
2. Operating Current: Max. 16A, 3680W
3. Wide voltage range: 230V-250V
4. Timing display range: 0 second---9999 days
5. Wattage display range: 0W---9999W
6. Votage display range: 0V---9999V
7. Current display range: 0.000A---16.000A
8. Frequency display range: 0Hz---9999Hz
9. Minimum wattage display range: 0.0W---9999W
10. Maximum wattage display range: 0.0W---9999W
11. Price display range: 0.00€/KWH---99.99€/KWH
12. Total KWh and cost display: 0.000KWH---9999KWH, 0.00€---9999€
13. Battery: 3.6V NI-MH, Rechargeable battery
KA-PM02 power meter introduction:
Power meter is a monitoring and testing instrument which determines the power consumption of a connected appliance
and the cost of the electricity consumed.
Built-in 3.6v rechargeable batteries(NI-MH). The purpose of the batteries is to store the total electricity and memory setting.
How to set KA-PM02 power meter:
1. Resetting:
If an abnormal display appears or the buttons produce no response, the instrument must be reset. To do this, press the RESET button.
Display Mode
2. Display mode:
Entire LC can be displayed for about 1 minute and then it automatically gets into Mode1. To transfer from one mode to the other, press the FUNCTION button.
Mode 1: Time/Watt/Cost Display Display duration(how long) this device connect to power source.
LCD on first line shows 0:00 with first two figures mean minutes( 2 figures will occur while occur at 10 mins) and the rest shows seconds. After
60 mins, it displays 0:00 again with first two numbers means hour(2 figures will occur at 10 hours) and the rest shows minutes. The rest
can be done in the same manner which means after 24 hours, it will re-calculate. LCD on second line displays current power which ranges in
0.0W~9999W. LCD on third lind displays the current electricity costs which ranges in 0.0 cost ~9999 cost. It will keep on 0.00 cost before setting
rate without other figures.
Mode 2: Time/cumulative electrical quantity Display Display duration(how long) this device connect to power source.
LCD on first line shows 0:00 with first two figures means minutes(2 firgures will occur while occur at 10 mins) and the rest shows seconds.
After 60 mins, it displays 0:00 again with first two numbers means hour(2 figures will occur at 10 hours) and the rest shows minutes. The
rest can be done in the same manner which means after 24 hours, it will re-calculate. LCD on second line displays current cumulative electrical
quantity which ranges in 0.000KWH~9999KWH without other figures. LCD on third line dispays"DAY"--"1" will be showed on numberical part
(the other three figures will be showed at carry) which means it has calculated electrical quantity for 24hours(one day). The rest can be done
in the same manner until the maximum cumulative time of 9999 days.
Mode 3: Time/Voltage/Frequency display LCD on first line displays the same as mode 1 dones. LCD on second line displays current voltage
supply(v) which ranges in 0.0v~9999v. LCD on third line displays current frequency(HZ) which ranges 0.0HZ~9999HZ without other figures.
Mode 4: Time/Current/Power Factor display LCD on first line displays the same as mode 1 dones. LCD on second line displays load current
which ranges in 0.000A~9999A. LCD on third line displays current power factor which ranges in 0.00PF~1.00PF without other figures.
Mode 5: Time/Minimum Power display LCD on first line displays the same as mode 1 dones. LCD on second line displays the minimum power which ranges in 0.0W~9999W. LCD on third line displays character of "Lo" without other figures.
Mode 6: Time/Maximum Power Dispaly LCD on first line displays the same as mode 1 dones. LCD on second line displays the maximum power which ranges in 0.0W~9999W. LCD on third line displays character of "HI" without other figures.
Mode 7: Time/Pirce display LCD on first line displays the same as mode 1 dones. LCD on third linr displays the cost which ranges in 0.00cost/KWH~99.99 cost/KWH without other figures.
Overload Display: When the power socket connects the load over 3680W, LCD on second lind displays the "OVERLOAD" with booming noise to warn the users.

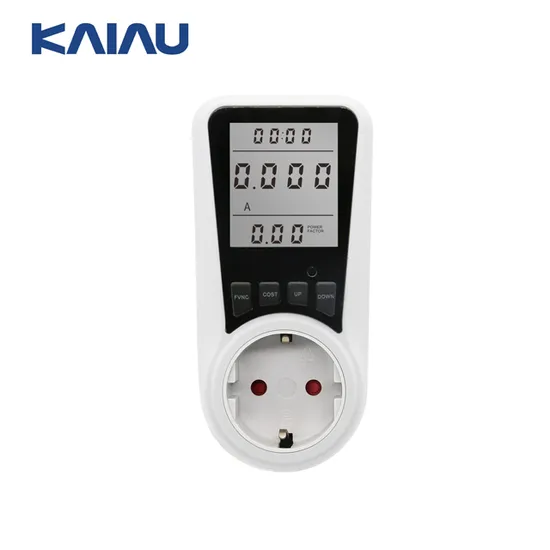

KA-PM02 powe metera acutal pictures:

---
