Continous Chocolate Penauts Bar /Automatically Chocolate Bar / Candy Chocolate Enrobing /High Capacity Energy Bar Equipment

Product Description

Enrobing Machine With Cooling Tunnel : Application :
This enrobing line is to coat chocolate on various food ,such as biscuit ,wafers, egg rolls,cake pie and snacks etc. Cooling tunnel is available. There are following special devices for optional also: 1.Automatic feeder: Simplify the feeding of biscuits or wafers etc to the enrobing wire mesh.
2.Granular sprinkler: Sprinking peanut granulars or sesame on the surface of coating products.
3.Carving : Carve beautiful pattern on the surface of enrobing products.

Item /Model	400	600	900	1000	1200
Wire mesh and belt width(mm)	400	600	900	1000	1200
Wire mesh and belt speed(m/min)	2.5-4	2.5-4	2.5-4	2.5-4	2.5-4
Refrigeration unit (set)	2(set)3HP	3(set)3HP	3(set)5HP	3(set)5HP	4 (set)5HP
Cooling Tunnel length (m)	10	13.5	15.5	17.5	20
Cooling Tunnel Temperature(ºC)	2-10	2-10	2-10	2-10	2-10
Total power(kw)	16	16.5	22.87	25	28.5
Weight(kg)	1800	2300	3200	3500	4050
Dimensions	1200x700x1500	15500x950x1800	17500x1200x1800	19500x1200x1800	22000x1450x1800

Cooling Roller : Features :
The frame and side panel is stainless steel, The roller is cooling by chiller water and driven by direct line motor. The hopper is made of Teflon to prevent sugar stick. Each roller has oil and scrap blade. The product is agitated by spiral to get the homogenous product.

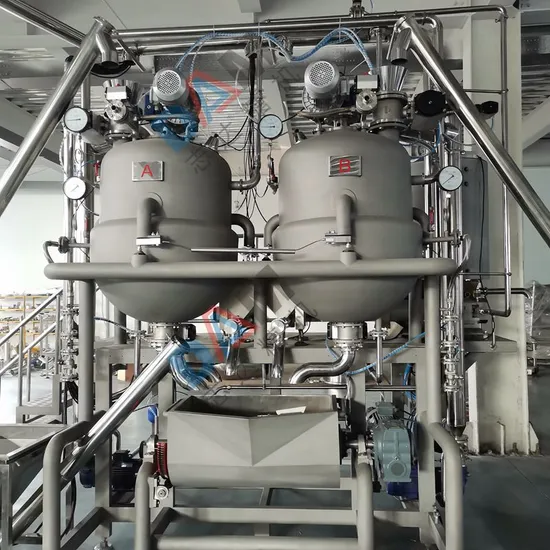

Name: Cooker
Features:
1.BodyMaterial:304ss Frame:201ss
2.Volume:300L
3.Steam pressure:0.7Mpa
4.Air pressure:0.4Mpa Motor: Bangfeili Power:4kw
Electric parts:Schneider
5.Frequency converter:DELTA
6.Pneumatic element:SMC Vacuum pump: Sterling
7.Temperature Controller:Omron
Manufactured Goods
Packing &Shipping

1.Plsatic Film with Woodern Box Covered
2.Reinforce with metal wire and wood board in container
3.Delivery time: 90 working days or depend on Custom
Factory&Exhibition

Factory Patent
FAQ
1.What is your company advantage ?
We have own factory ,designed and manufacture by ourself. Near the Qingdao port, it is very convinent for exporting . Cheap than European machine, short delivery time than Germany machine.
2.What is the payment terms?
T/T or L/C , 30% advance deposit ,70% before loading .
3.Where is the factroy location?
Dongying City ,Shandong Province, China, North of the China. 4.Could you please send me your best price?
Before quoting, please kindly consult us and provide a.The type of confectionery you will produce.
b.The size of your product, your expected capacity for the line or machine

---
