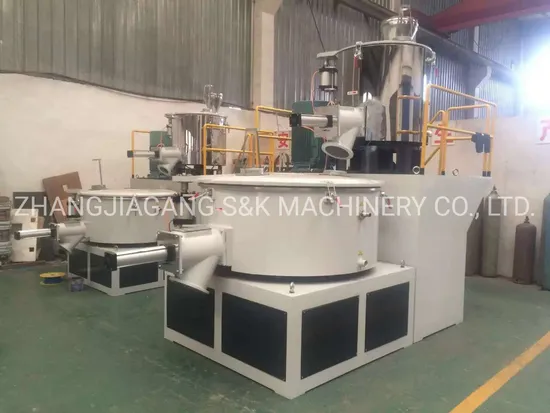

Plastic Raw Material Mixer Machinery Vertical or Horizontal Mixer for Powder PVC Compound Pellet Color Masterbatch

Product Description

Powder Mixing Machine/Plastic Mixer/Mixing Equipment/Pneumatic Conveying System/Material Weighting System/Dosing Mixing System/Vacuum Conveyor/Extruder Machine
Description:
Application:For plastic, rubber, daily chemical and other industries of various materials mixing, stirring, drying, coloring and other processes.Features:1.It is the basic equipment of PVC pipe/profile/board, PVC foam board making machine.
2.All important components(Pan,agitator,distribution box,etc.) are manufactured inside the company to ensure the quality of the machines.
3.The mixer lid is double sealed and opened in the pneumatic way.
4.The abrasion resistant coating of the stirring paddle increases the service life,and runs smoothly throungh the static and dynamic balance test.
5.Barrel wall undergoes precise grinder.
6.Thermo control meters adopt RKC from Japan.Main Technical Parameters:

Item Model	Total Volume(L)	Effective Volume(L)	Production Capacity kg/h	Rotating Speed(r/min)	Motor Power (kw)	Heat Power/ Cool Medium	Weight(t)
SRL- 300/600	300/600	225/384	550-600	480/964/70	40/55/11	9kw/water	3.5
SRL- 500/1000	500/1000	375/660	800-1000	441/886/60	47/67/15	9kw/water	7.8
SRL- 500/1600	500/1600	375/1024	800-1000	441/886/51	47/67/18.5	9kw/water	8.5
SRL- 800/2000	800/2000	560/1280	1300-1500	330/660/51	110/18.5	self-friction /water	10
SRL- 800/2500	800/2500	560/1600	1300-1500	330/660/51	110/22	/	11
SRL- 1000/3500	1000/3500	750/2240	800-2000	330/660/51	132/37	/	12

Our Services
Pre-sale :
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals

In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.
