Ultra-Precision Dual Power Nano Grinding and Separation Mill for Nano Materials, Mlcc, Lithium Batteries, and Electrodes

Product Description

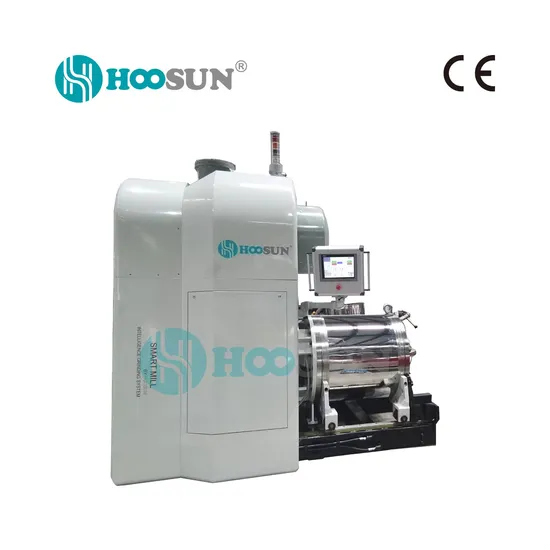

Product Description: Overview: The Dual Power Bead Mill is designed for advanced grinding and separation of nano materials. Based on the principle of screen-free centrifugal separation, it ensures precise and efficient material processing. This mill is ideal for various industries, including battery production, chemicals, inks, and coatings.
Key Features:
Centrifugal Separation:
Utilizes a dual-motor system to achieve high-speed centrifugal force, enhancing separation and grinding efficiency. Zirconium balls and materials move synchronously within the chamber, ensuring effective grinding and separation. High Grinding Efficiency:
Achieves a fineness range of 50-150 nm with zirconium bead diameters from 0.03 to 0.6 mm. Independent high-speed grinding minimizes material loss and maximizes productivity. Versatile Applications:
Suitable for processing a wide range of materials, including MLCC, lithium batteries, silicon cathode electrodes, alumina, and ceramic inks. Ideal for micro- and nano-materials, digital inkjet printing, and conductive materials. Energy Efficiency:
Reduces energy consumption by more than 70%, leading to significant cost savings. Advanced vacuum dispersion technology prevents leaks and contamination, ensuring clean and efficient operation. Durability and Reliability:
Made from wear-resistant materials based on silicon carbide, ensuring long service life and reliability. Designed for continuous operation with minimal maintenance requirements. Performance Advantages:
Innovative Design:
Based on screen-free centrifugal separation, ensuring efficient grinding and separation. The separator generates centrifugal force, keeping zirconium balls in constant motion for optimal grinding. Precision and Control:
Optional grinding and separation materials include tungsten carbide, polyurethane, zirconium, silicon carbide, and silicon nitride. Achieves ultrafine grinding with high precision, suitable for the most demanding applications. Application-Specific Benefits:
Highly efficient for new nano materials, lithium batteries, and other advanced applications. Ensures superior product quality with uniform particle distribution and homogeneity. Conclusion: The Dual Power Bead Mill is an advanced solution for efficient grinding and separation of nano materials. Its cutting-edge technologies, energy efficiency, and reliable construction make it an indispensable tool for production. Contact us to learn more and place an order! Technical Parameter

Model	Chamber	Motor Power	Bead Dia.	Bead Rate	Batch Capacity
SMN 0.5	0.5L	3.7KW	0.03 - 0.3mm	80 - 85%	1-7L
SMN 2	1.5L	3.7KW	0.03 - 0.3mm	80 - 85%	5 - 50L
SMN 10	10L	22KW	0.03 - 0.3mm	80 - 85%	50 - 500L
SMN 25	25L	37/45KW	0.03 - 0.3mm	80 - 85%	100 - 1000L
SMN 60	60L	75/90KW	0.03 - 0.3mm	80 - 85%	300 - 3000L
SMN 90	90L	110KW	0.03 - 0.3mm	80 - 85%	500 - 3000L
SMN 150	150L	250KW	0.03 - 0.3mm	80 - 85%	1000 - 4000L
SMN 400	400L	415/500KW	0.03 - 0.3mm	80 - 85%	2000 - 10000L
