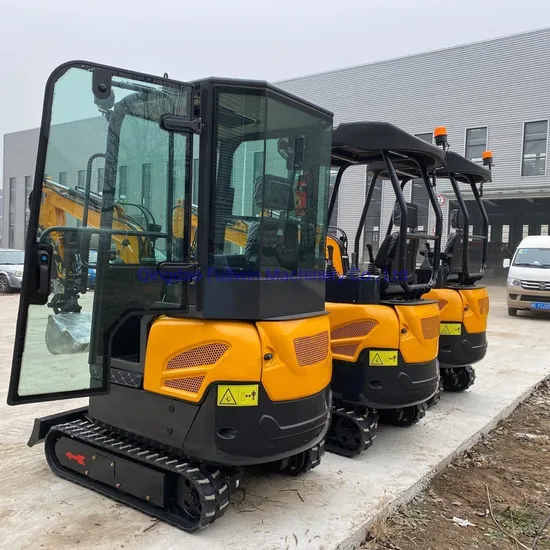

Hot Sale Mini Excavator Price Small Household Towable Excavator

Product Description

Product Parameters

FW10D
Weight	1000KG
Digging Bucket Capacity	0.025m³/120KG
Bucket Width	380mm
Engine Model	Koop192f
Optional Engine	Briggs&Stratton Yanmar
Bore Stroke	Single Cylinder, Fan Cool
Rated Power	7KW/3000R/MIN
Main Pump	G5-6
Displacement	6.8ML/R
Swing Motor	SANYANG(BMRS-250)
Traving Motor	SANYANG(BMT-245)
Travel Speed	1.5km/h
Dimensions
Size	2775*930*2219 mm
Wheelbase	910 mm
Total Length Of Track	1230 mm
Platform Ground Clearance	380 mm
Platform Back Turing Radius	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
Working Range
Max.Digging Depth	1650 mm
Max.Vertical Digging Depth	1375 mm
Max.Digging Height	2610 mm
Max. Dumping Height	1850 mm
Max.Digging Radius on Ground	2850 mm
Min. Rotation Radius	1330 mm
Max Upgrade Height of Bulldozer Blade	345 mm
Max Upgrade Depth of Bulldozer Blade	255 mm

Available Accessories

Product Description

Detailed Photos

FAQ
Q1. Are you a manufacturer?
A: Yes, we are a factory with more than 3 years of manufacturing experience.
Q2. How can we guarantee quality?
A: There will be a pre-production sample check before mass production and a final inspection before shipment.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
Q5. How much is the freight fee?
A: We will confirm the freight cost based on the size of the model, packing, transportation method, and delivery terms.
Q6. What are your terms of packing?
A: Generally, we use standard exported wooden cases for LCL goods and fixed well for FCL goods.

Q7. Can you customize or support ODM/OEM?
A: Yes, with sufficient quantities, we can customize unique designs and colors for you.
Q8. How do you make our business a long-term and good relationship?
A: We keep good quality and competitive prices to ensure our customers' benefits; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
