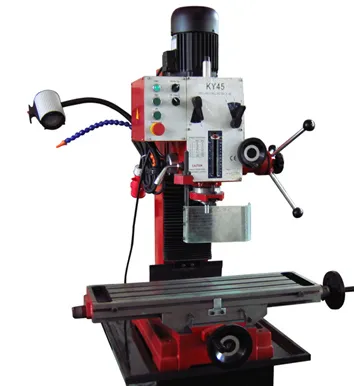

| Specifications |
| Drilling capacity | 32mm/40mm/45mm |
| Face milling capacity | 80mm |
| End milling capacity | 32mm |
| Max. Distance from spindle nose to table | 450mm |
| Min. Distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT4 or R8 |
| Step of speed | 6 |
| Range of spindle speed 50Hz | 80-1250 rpm |
| 60Hz | 95-1500 rpm |
| Swivel angle of headstock perpendicular Size of table | 800*240mm/700*240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm/400mm |
| Power | 1.5KW |
| Voltage/frequency | As customer's requirement |
