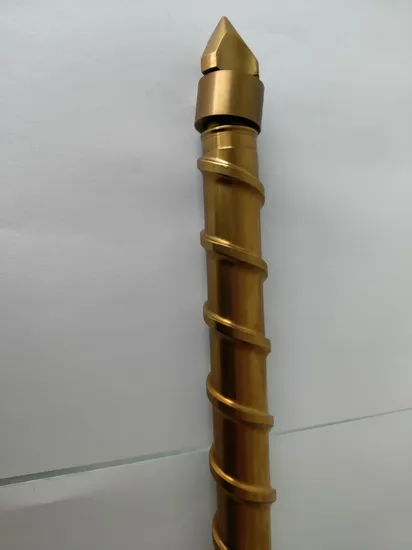

Durable Screw for Injection Molding Machines Stainless Steel for ABC PP PE TPU Tpz PE PS PA66 PPS LCP PA6t PA9t PA4t PA9t PA46 PA6t

Product Description

Our different kinds of Screw Barrel sets suit for Brands of:
ENGEL,Krauss Maffei, ARBURG, Sumitomo DEMAG, JSW, HUSKY,NISSEI,HAITIAN, FANUC, YIZUMI,WELLTEC,TOYO, etc.
Cutomzied Screws and Barrels are available.
One Screw Barrel set including:
Srew, Barrel, Screw tip, Sleeve, Ring, Srcrew nozzle, Flange.
You just need let us know:
what is the brand and model of your machine?
what's the tons of your machine tons?
what plastic materials do you use?
how much GF do you add in the plastic materials?
------Then we can quote to you ASAP.
Our Production time: 20 to 30 canlendar days;

Screw Selection Guide
Model	Product Name	Technology	Hardness	Plastic Range	Scope of application	Wear-Resistant	Corrossion-Resistant
FC-S300	Nitriding Steel	Nitridation	HV960 degree above	No fiber added	ABC/PP/PE/TPU/TPZ/PE/PS	★★	★★
FC-S400	Double Alloys	Bottom Grinding	58-60	Glass Fiber 30% or less	PC/PPS/POM/PA/PBT	★★★	★★
FC-S500	All Hard Alloys	Bottom Grinding	60-62	GF 30% to 40% or less	PA/LCP/PPS/PEEK/PEI bakelite,high viscosity, poor fluidity, PC white, PC transparent.	★★★★	★★★
FC-S600	All Hard Powder Alloys	Bottom Grinding	62-63	GF 30% to 50% or less	PA/PA6/PPS/LCP	★★★★★	★★★★
FC-S700	Ceramic Powder Alloys	Spray	65-68	GF 50% or less	V0 fireproof material, Dupont HTN, Flame retardant.	★★★★★	★★★★★
FC-S800	Halogen Free Ceramics	Spray	68-75	GF adding 50% + Halogen-free	PA6T/PA9T/DSM PV4T/PA46/PA6T/ PA9T/PA10T and other highly corrosive halogen-free fiber adding plastics with 30%.	★★★★★★	★★★★★★

---
