Fully Automatic Handkerchief Paper Production Line Mini Tissue Manufacturing Machine

Product Description

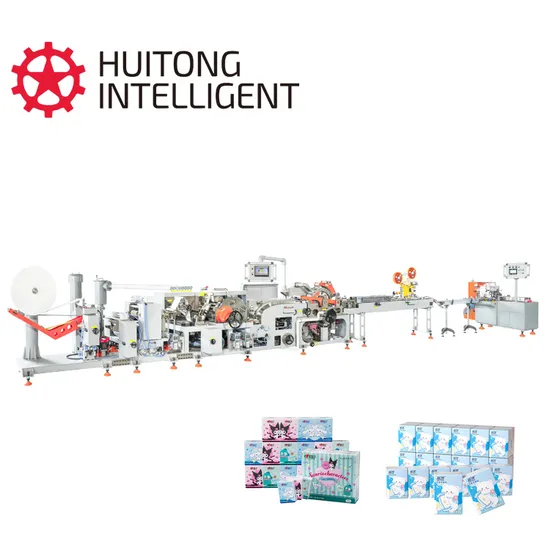

Fully automatic production line for handkerchief paper
Product Description
ENHANCED PRODUCT DESCRIPTION:
Automatic handkerchief paper machine with Advanced Plastic Type Transfer System for Maximum Efficiency Explore a variety of machine types, whether full auto or semi auto. We warmly invite you to consult with us and explore innovative production solutions tailored to your market's popular products.
Remarkable Features: ♦Width of Jumbo roll: 210mm ± 2m1.5. Roll diameter of jumbo roll: ≤ Φ 1500mm
♦Size of jumbo roll: 210mm × 210mm±2mm
♦Jumbo roll diameter: ≤ 1500 mm, inner diameter Φ 76 mm ♦Packaging speed: guarantee value is 18 pack/minute
♦Qualification rate: above 96%
♦Effective operation rate: above 95%
♦Package specification: Single mini package size: 72mm × 53mm × 25mm; Single size of standard small pack: 105mm × 53mm × 25mm Vivid Sample Picture:
Comprehensive Machine Information:
Key Technical Parameters:

Finished Products Size	72 ± 2mm × 53±2mm × 25mm ± 2mm min(Other size to be specified)
Raw Material Diameter	≤ φ 1200 mm
Core Size of Jumbo Roll	Φ 76.2 mm (Other size to be specified)
Machine Speed	140-150 packages/minute (subject to the production of 8 pieces of 4-layer paper)
Programmable controller	Mitsubishi Programmable Controller (PLC)
Folding Type	Vacuum suction
Handkerchief quality	1. Use surface is positive,few and short fold; 2. Cutting side is smooth, no black and burr; 3. Regular fold, derangement is≤2 mm,no inner fold and backslash; 4. Handkerchief format tolerance is ±3 mm; 5. Side embossing is symmetricaland clear, no delaminating.
Packing result	1. Handkerchief tissue inside is neat and the tightness is the same. The surface is smooth, square and symmetrical ; 2. The sealing is firm and no hole. Tip triple is symmetrical and good look. Open part is no broken hole or stick with tissue. Film cann't discolorate, no pollution tissue. 3. Virtul line is in the middle, tolerance is ±2 mm,easy to open. 4. Label position is in the middle of virtul line,left-to-right tolerance is ±2 mmand up -to-down tolerance is ± 1mm. Stick is firm, no inner fold and backslash.

Captivating Machine Picture:
Insightful Factory Information:
Exchange of foreign friends:
CERTIFICATE:

---
